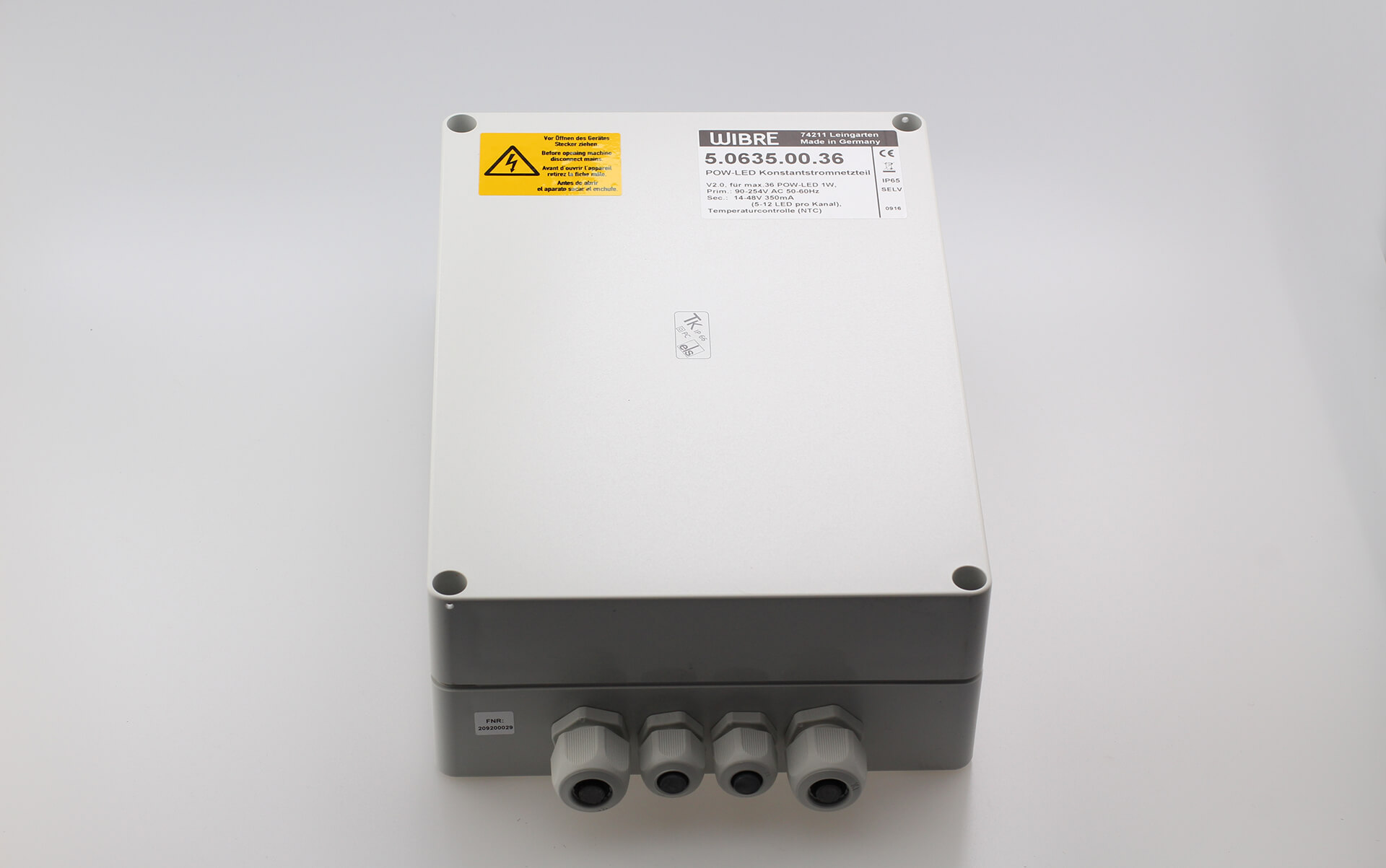

5.0635.00.36Constant Current power supply

Description

  • for max. 3 x 12 POW-LED 350 mA, IP65
  • Constant current converter 350mA for POW LED modules
  • Controlled constant output current 350mA +- 5%
  • SELV
  • Over temperature and short circuit protection
  • overload and overvoltageprotection
  • Identification of polarity: +/-
  • POW LED modules must be wired in series connection to the constant current power supplies
  • Normen: Safety: EN 61347 Radio Interferencies: EN 55015 Harmonics: EN 61000-3-2 Immunity: EN 61547
  • Power supplies with DALI available on request
Article number V-AC Hz mA W V-DC ta °C LxWxH mm kg IP
5.0635.00.36 90-254 50-60 350 5-17 (je Kanal) Max. 48,0 Max. 45° 254x180x54 1,8
