5.0630.10.04Constant Current power supply

Bedienungsanleitung
Katalogseite

Description

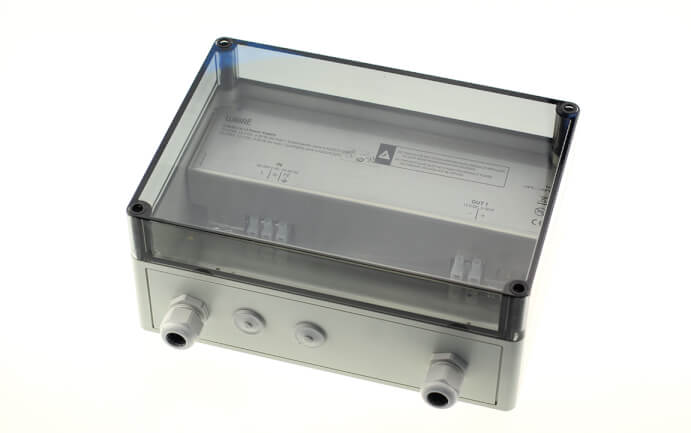

  • IP65 mounting housing, out 12 V-DC, 25 W, for 1 spotlight 4.0102/4.0100.30
  • Constant current converter for POW LED modules
  • Controlled constant output current
  • SELV
  • Over temperature and short circuit protection
  • Overload and overvoltageprotection
  • Identification of polarity: +/-
  • POW LED modules must be wired in series connection to the constant current power supplies
  • Normen: Safety: EN 61347 Radio Interferencies: EN 55015 Harmonics: EN 61000-3-2 Immunity: EN 61547
Article number V-AC Hz mA W V-DC ta °C LxWxH mm kg IP
5.0630.10.04 90-305 50-60 1200 25 12 Max 50° 254x180x111 0,6
