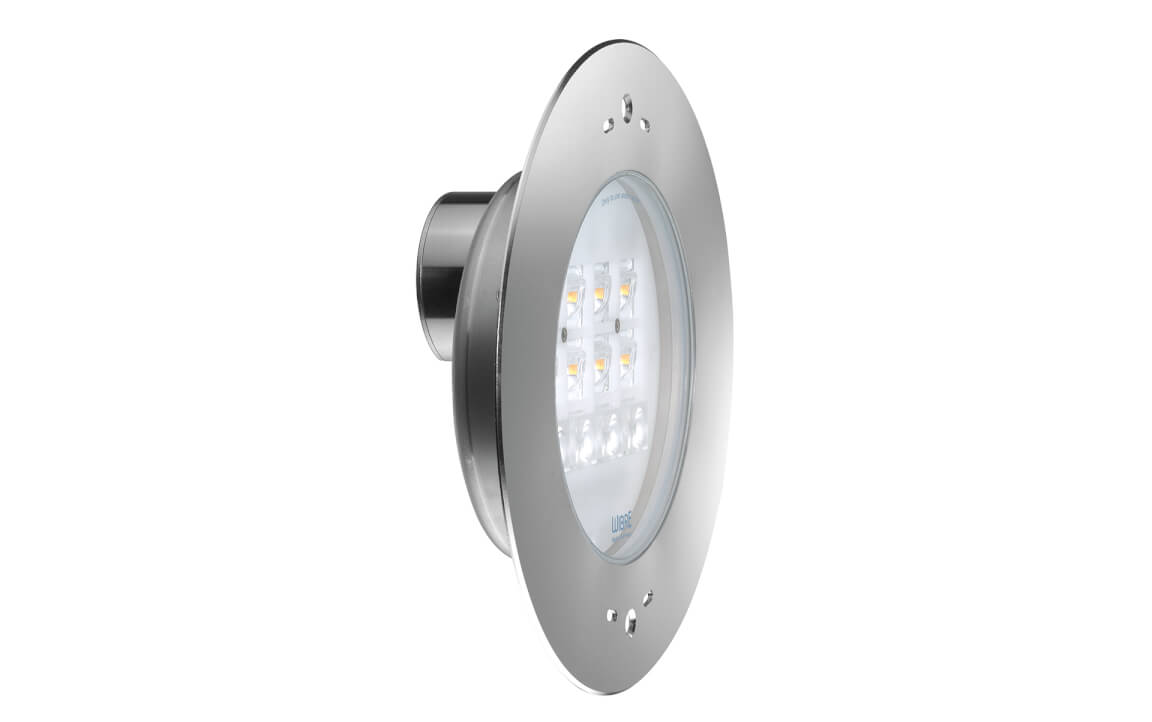

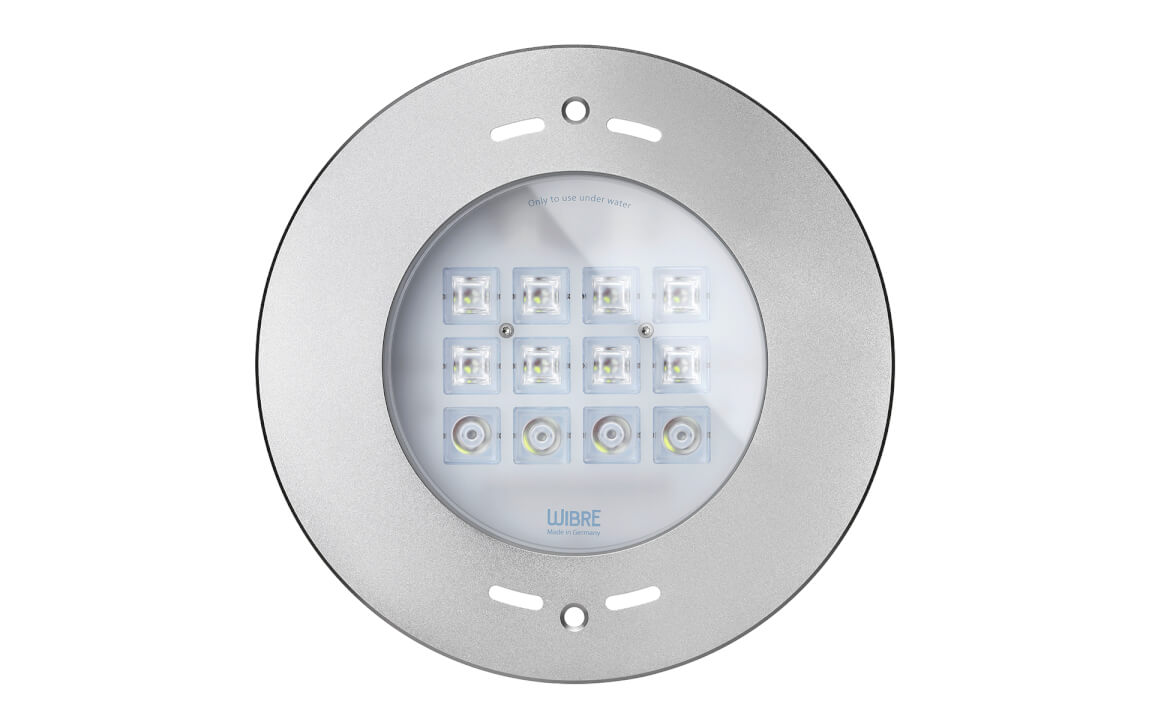

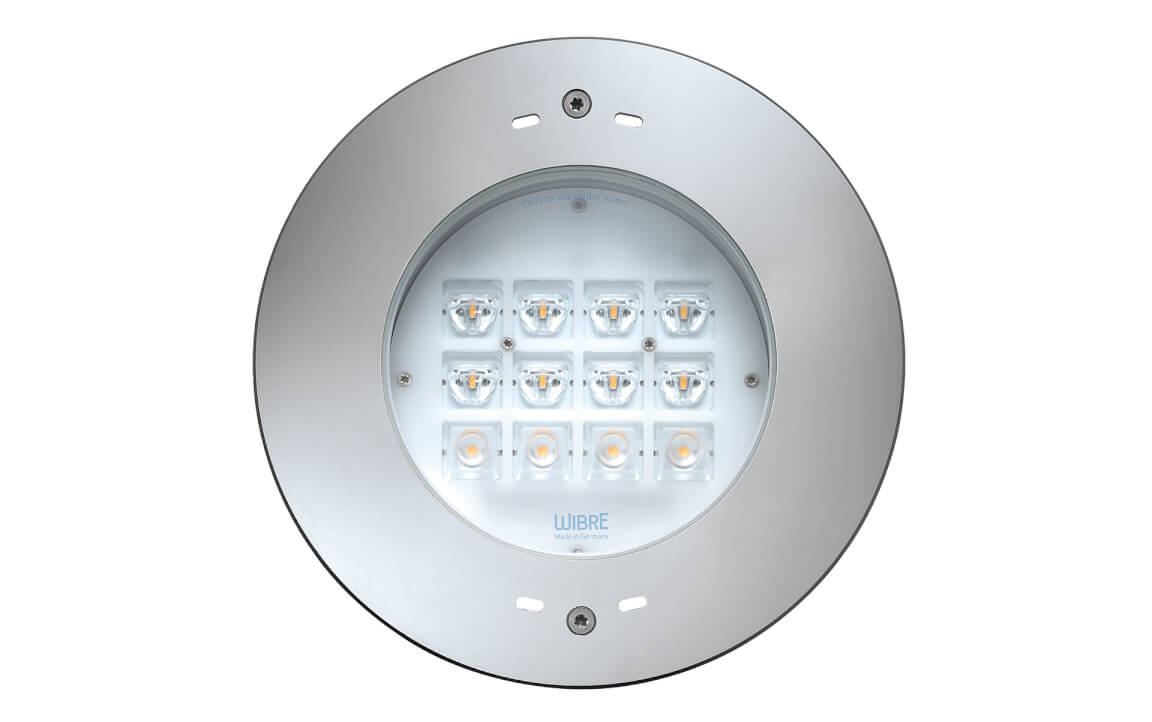

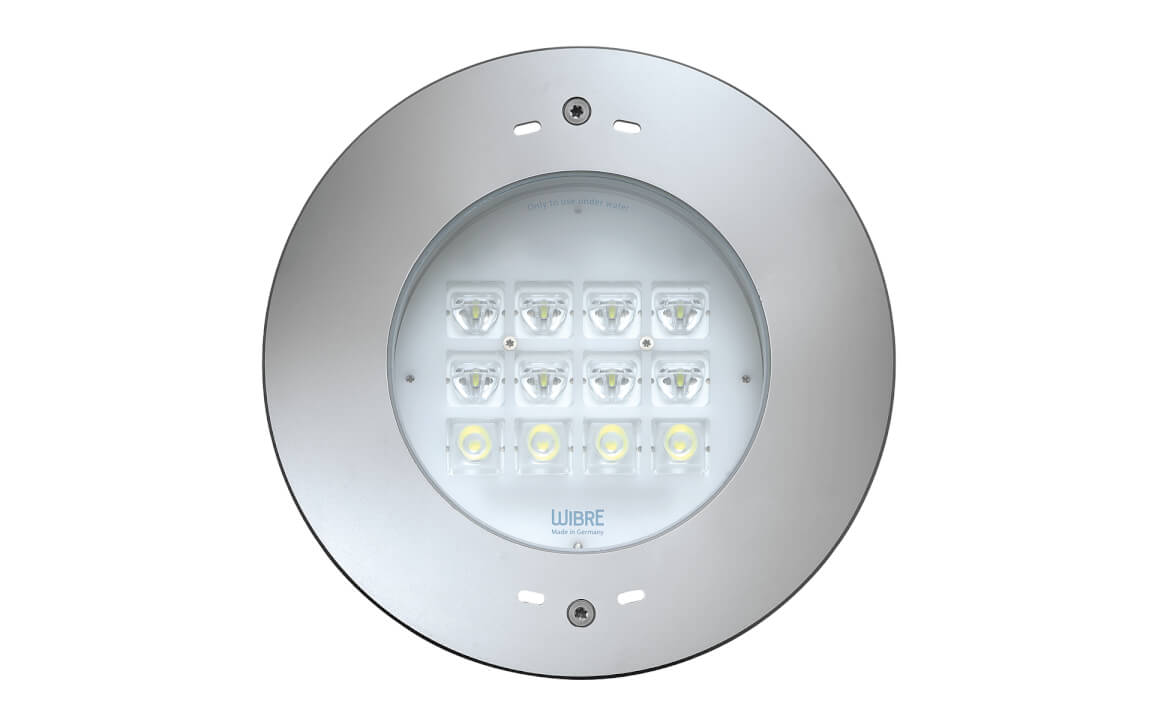

Swimmingpool-Light 4.0292 For illuminating medium and large swimming pools.

Description

  • Protection class IP68 – up to 5m water depth
  • Entirely made of stainless steel 316Ti 1.4571, epolished
  • Round attachment cover, made of stainless steel 316Ti, height 2 mm
  • POW-LED cold white, warm white, neutral white
  • POW-LED royal blue
  • Multichip POW-LED RGB-W
  • operating mode: constant current
  • temperature controlled (onboard)
  • surge protection
  • light distribution especially for swimming pool lighting "asymmetric Mixflux"
  • Constant-current power source/RGB-W-controller ordered separately

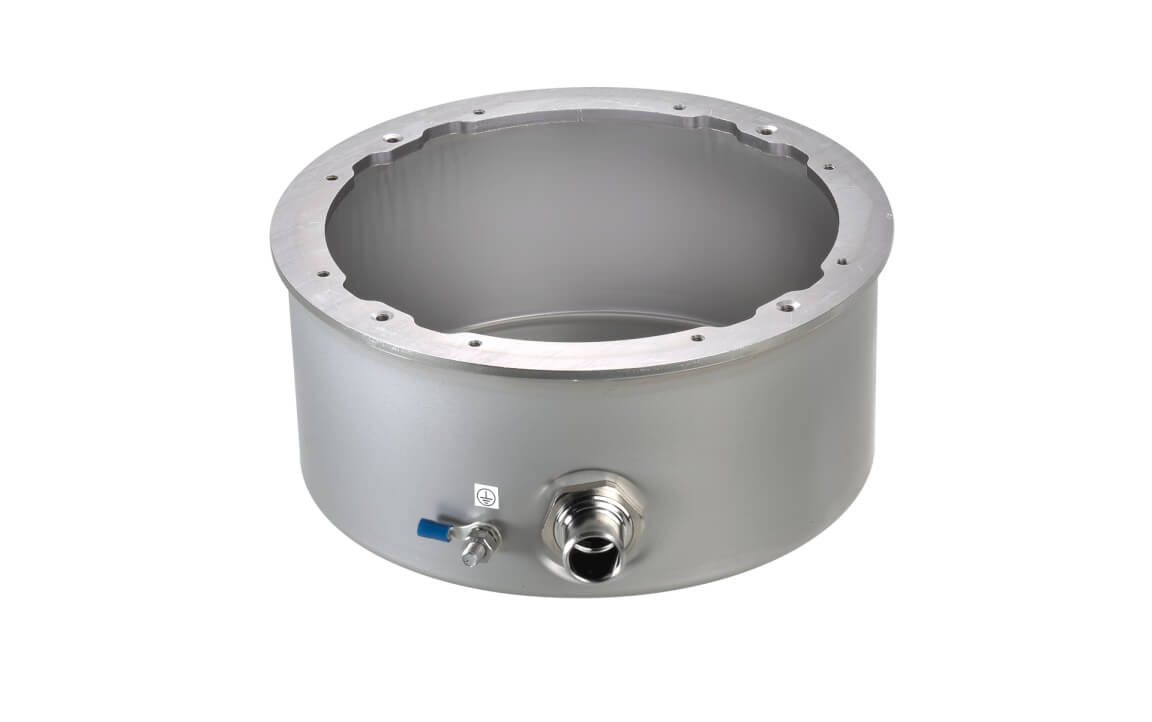

  • Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube
  • Supplied with 5 m of special underwater cable

Application

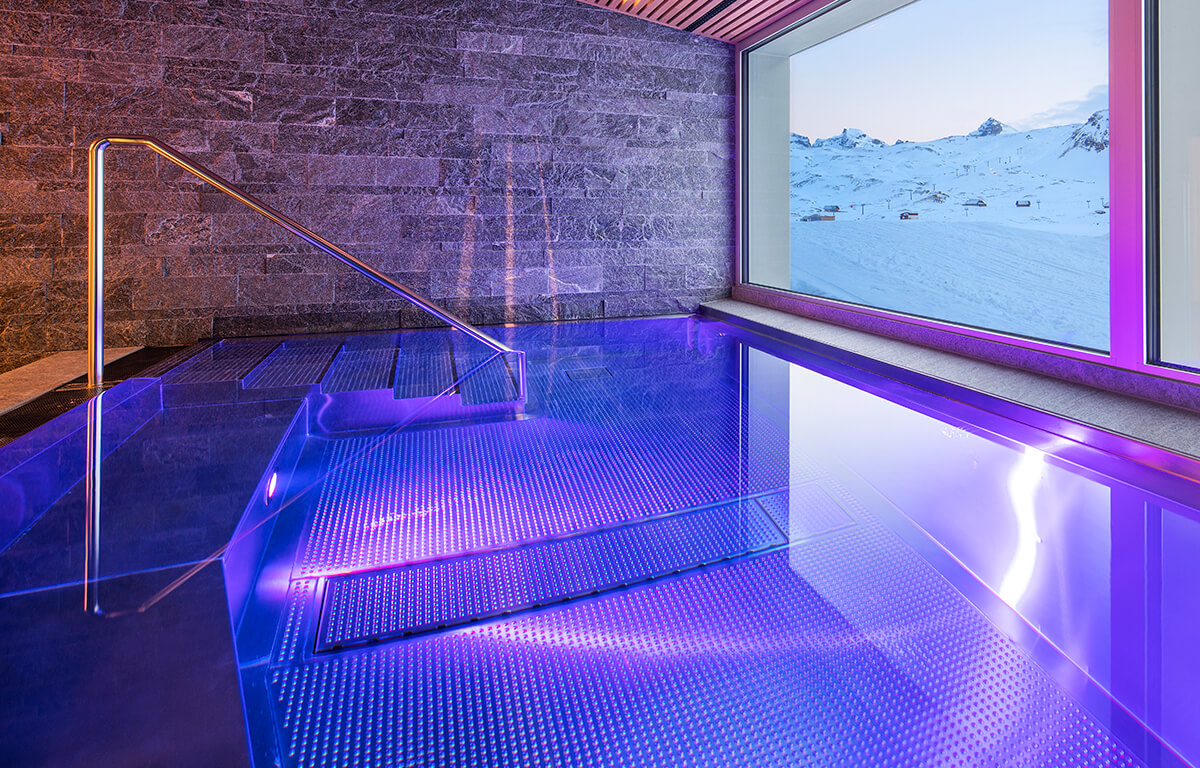

  • For illumination medium and large swimming pools.

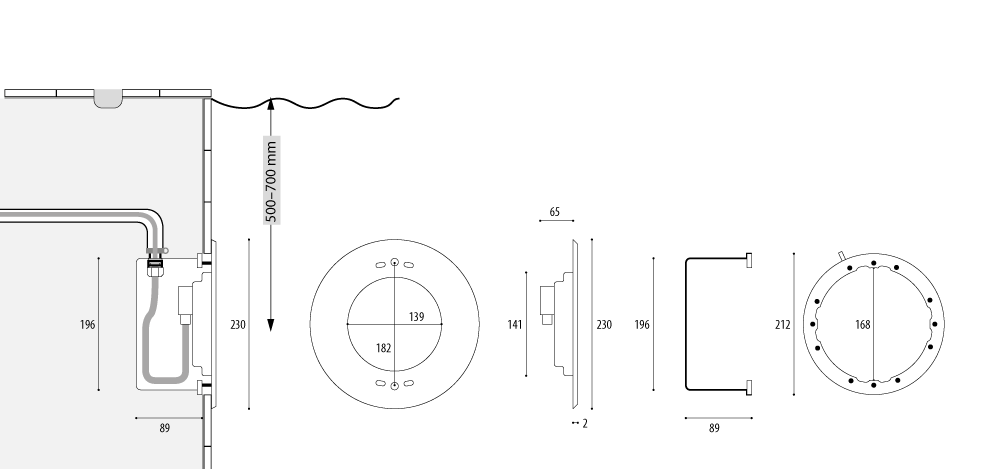

Drawing

Notes

  • Spotlights can (according to prior agreement) also be supplied without the connected cable to simplify installation with large cable lengths (up to max. 40m). The cable can be connected to the connection box without opening the spotlight.
  • Matching installation housing should be selected, depending on the installation type and situation.
  • Version for saline water see page

Options

  • POW-LED with beam angle spot 15°, medium 30°, medium flood 45°; flood 120°, asymmetric and elliptical 15x50° on request
  • POW-LED monochrome, single colour in green, red, amber, blue, capri blue
  • Individual configuration of the LED multichips possible

Accessories / Housings

9.0630.65.12

  • mounting housing
  • plastic, IP65, with 2 in/1 out, transparent cover,
  • suitable for power supply 5.0630.01.12 and RGB-W Controller 5.0630.09.52

5.0670.09.65

  • DMX-Dongle
  • load resistance 120 Ohm

4.0292.01.00

  • Installation housing
  • made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for welding into stainless steel pools and for installation in concrete pools with tile covering

4.0292.02.00

  • Installation housing
  • made of V4A stainless steel with 1.5m protective cable tube and M20 plastic terminating connection, for installation in thin-walled pools and foil lined pools (pressure flange ø 244 mm)

4.0292.03.00

  • Installation housing
  • made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in pools with adhesive/foil coating (adhesive flange ø 350 mm)
Article number Lamps Lumen Light colour Wattage Current Radation angle UW-Cable, installs
Versions: Underwater environments only
Standard version - New installation in combination with installation housing
4.0292.00.11 12 POW-LED 6900 lm 6000K cold white total 47 W CC 3600mA @12 V-DC asymmetrisch Mixflux UW, 2x2,5 qmm
4.0292.00.12 12 POW-LED 5640 lm 3000K warm white total 47 W CC 3600mA @12 V-DC asymmetrisch Mixflux UW, 2x2,5 qmm
4.0292.00.13 12 POW-LED 6036 lm 4500K neutral white total 47 W CC 3600mA @12 V-DC asymmetrisch Mixflux UW, 2x2,5 qmm
4.0292.00.16 48 POW-LED 500mW/LED royal blue 450 nm total 49,5 W CC 3600mA @12 V-DC asymmetrisch Mixflux UW, 2x2,5 qmm
4.0292.00.41 12 Multichip POW-LED cold white: 2100 lm RGB-CW cold white 6000K all on 75 W CC 1400mA @12 V-DC asymmetrisch Mixflux UW, 1x4,0 + 4x1,0 + 2x0,25 qmm
4.0292.00.42 12 Multichip POW-LED warm white: 1800 lm RGB-WW warm white 3000K all on 75 W CC 1400mA @12 V-DC asymmetrisch Mixflux UW, 1x4,0 + 4x1,0 + 2x0,25 qmm
4.0292.00.43 12 Multichip POW-LED neutral white: 1920 lm RGB-NW neutral white 4500K all on 75 W CC 1400mA @12 V-DC asymmetrisch Mixflux UW, 1x4,0 + 4x1,0 + 2x0,25 qmm
