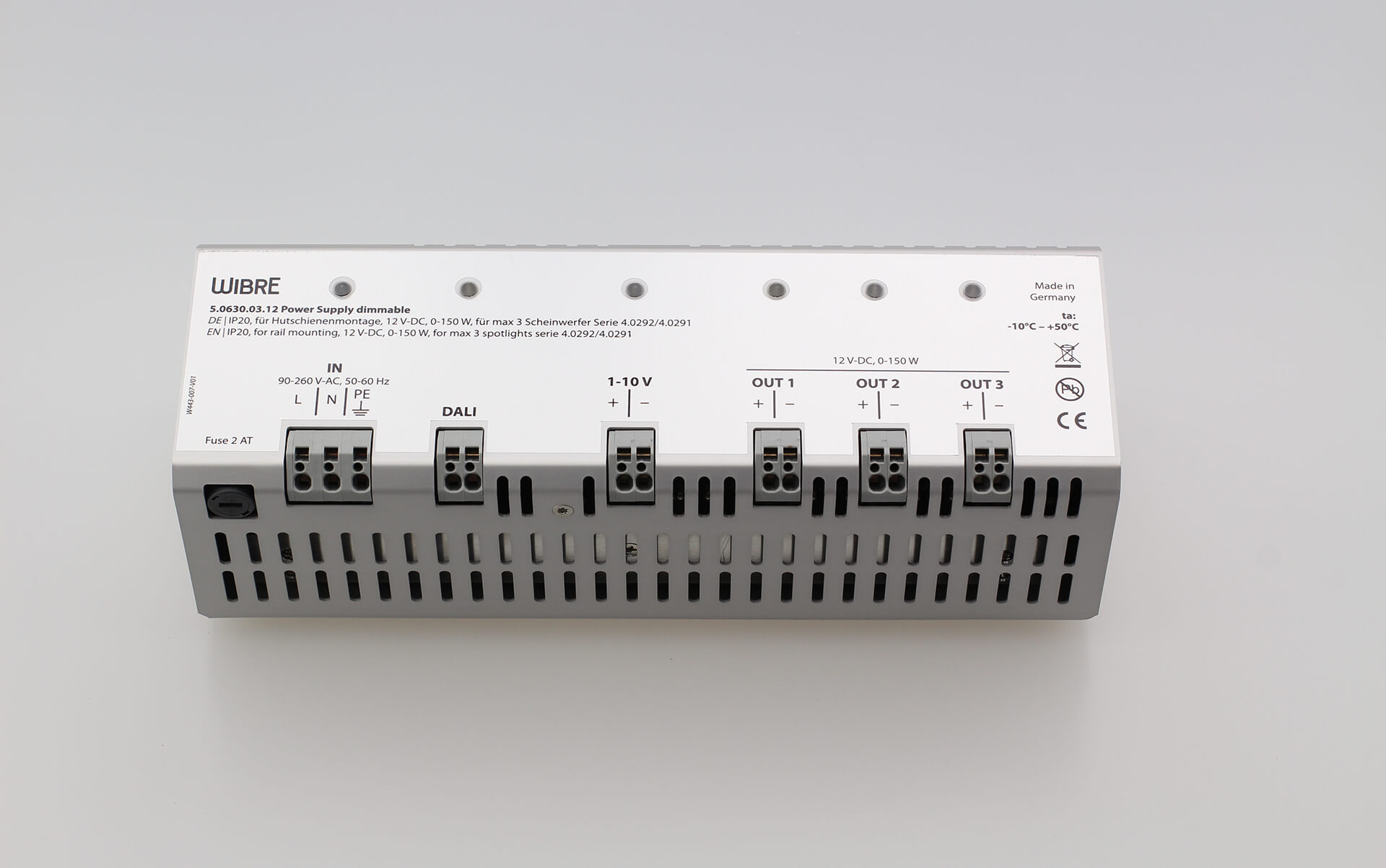

5.0630.03.12Contant Current power supply, dimmable

Description

  • IP20, for H-rail mounting, out 12-15 V-DC, 50-120 W, dimmable (Dali, 1-10 V), for 3 spotlight 4.0292 and 4.0291
  • Constant current converter for POW LED modules
  • Controlled constant output current
  • SELV
  • Over temperature and short circuit protection
  • Overload and overvoltageprotection
  • Identification of polarity: +/-
  • POW LED modules must be wired in series connection to the constant current power supplies
  • Normen: Safety: EN 61347 Radio Interferencies: EN 55015 Harmonics: EN 61000-3-2 Immunity: EN 61547
Article number V-AC Hz mA W V-DC ta °C LxWxH mm kg IP
5.0630.03.12 90-250 50-60 3600 50-120 12-15 Max 50° 243x82x71 0,8
