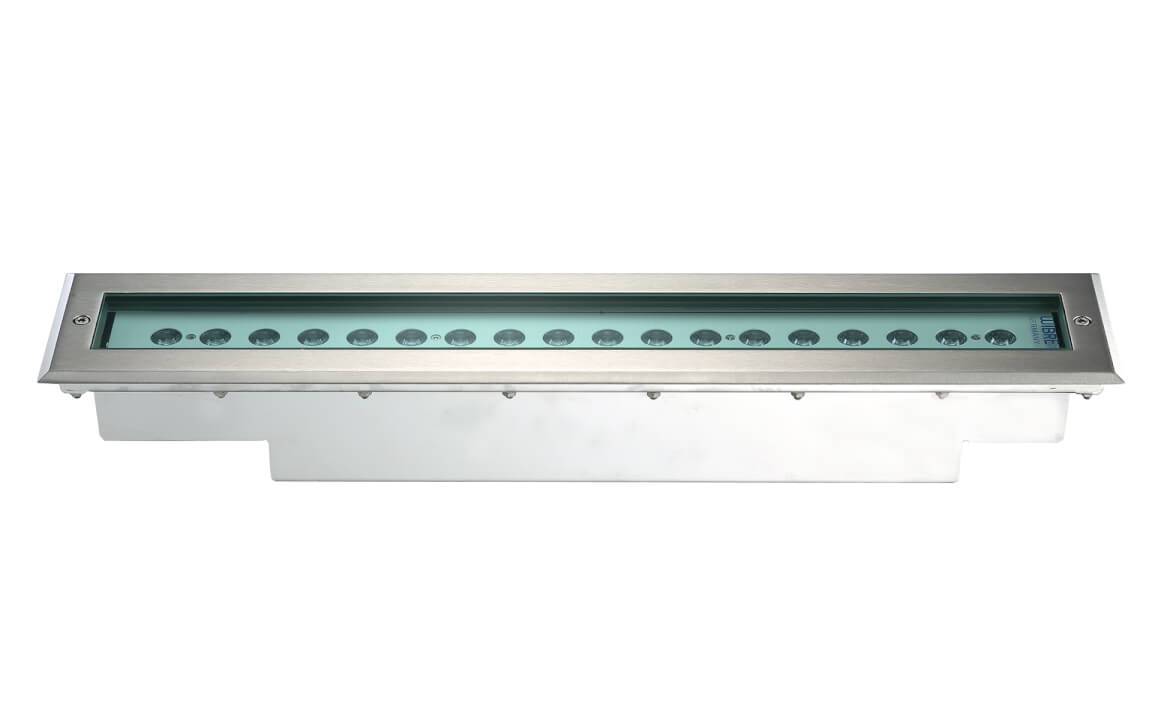

Recessed Linear Spotlight 4.3061 For illumination and accent lighting in swimming pools and water attractions.

Description

  • Protection class IP68 – up to 5m water depth
  • Entirely made of stainless steel 316Ti 1.4571
  • Rectangular cover, made of stainless steel 316Ti, height 5 mm
  • POW-LED cold white, warm white, neutral white
  • POW-LED blue
  • POW-LED RGB
  • operating mode: constant current
  • rotation-symmetric light distribution
  • temperature controlled (NTC)
  • adjustable +/- 15°
  • Constant-current power source/RGB Controller external
  • Cable gland PG11, stainless steel 316Ti
  • Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube and connection socket (order separately)
  • Supplied with lamp and 3m of underwater cable

Application

  • For fixation inground and walls for illumination and accent lighting in swimming pools, water attractions and fountains.

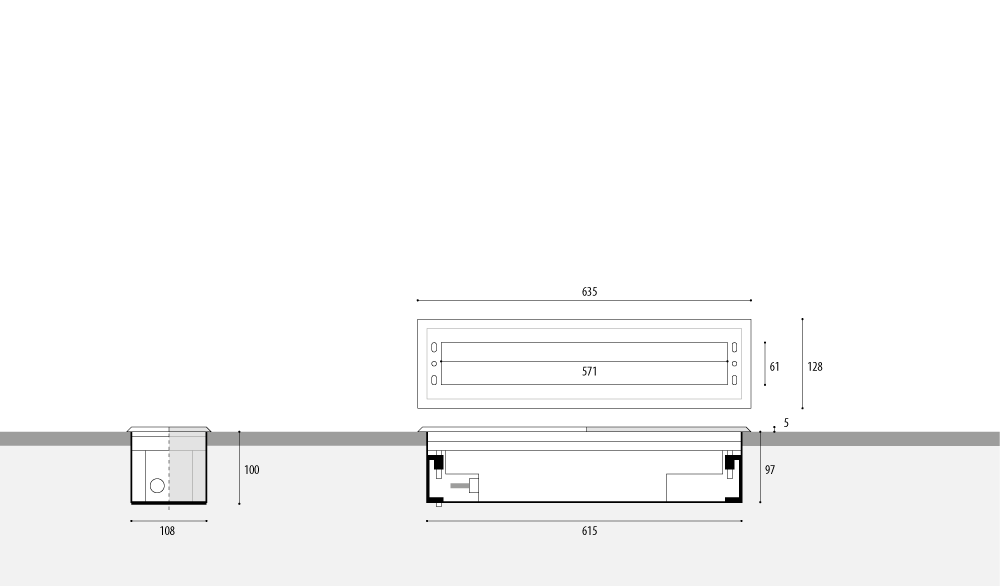

Drawing

Notes

  • Matching installation housing should be selected, depending on the installation type and situation.

Options

  • POW-LED with beam angle spot 10°, medium 30°, medium flood 45°; flood 90° and elliptical 41x10° on request
  • POW-LED monochrome, single colour in green, red, amber, blue
  • Installation housing for other pool types or flush cover version on request.
  • Variant as surface-mounted spotlight available (tiltable from 180 °)

Accessories / Housings

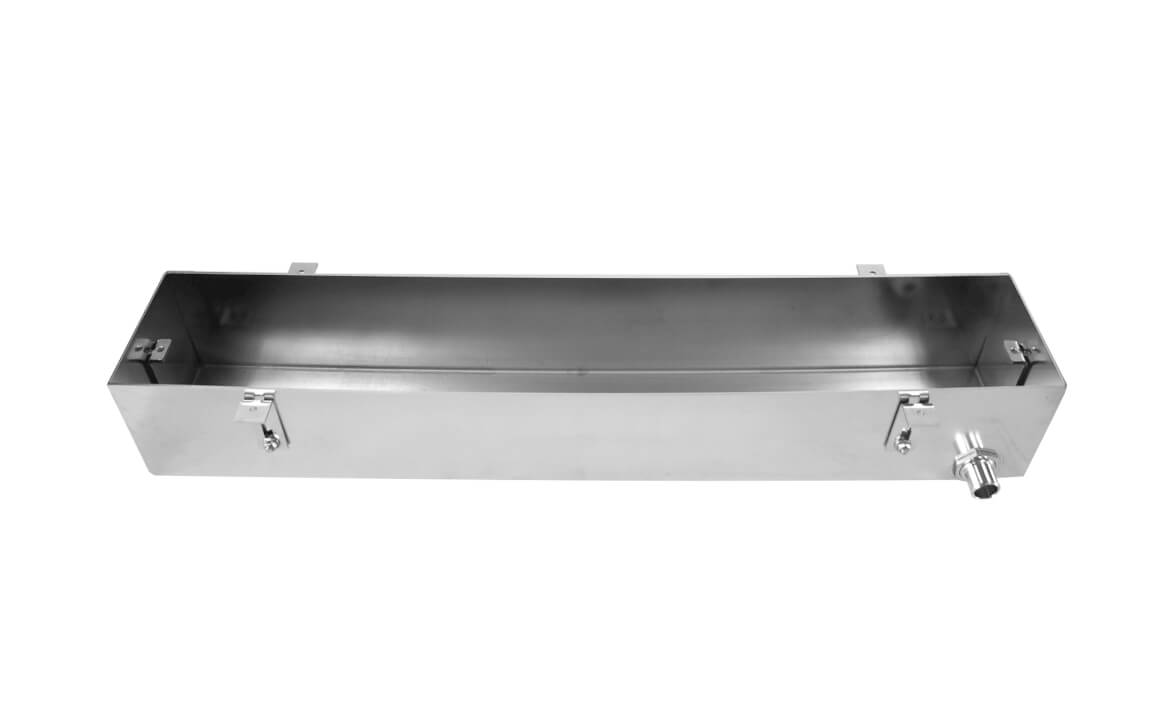

4.3061.01.00

  • Installation housing
  • made of V4A stainless steel with 1.5m protective cable tube and M20 plastic terminating connection, for welding into stainless steel pools and for installation in concrete pools with tile covering
Article number Lamps Lumen Light colour Wattage Current Radation angle Cable, installs
Versions: Underwater environments only
4.3061.40.11 18 POW-LED 4140 lm 6000K cold white total 48 W CC 700 mA @24 V-DC 30° medium UW, 8x0,5 qmm
4.3061.40.12 18 POW-LED 2700 lm 3000K warm white total 48 W CC 700 mA @24 V-DC 30° medium UW, 8x0,5 qmm
4.3061.40.13 18 POW-LED 2880 lm 4500K neutral white total 48 W CC 700 mA @24 V-DC 30° medium UW, 8x0,5 qmm
4.3061.40.16 18 POW-LED 610 mW/LED royal blue total 48 W CC 700 mA @24 V-DC 30° medium UW, 8x0,5 qmm
4.3061.40.19 18 POW-LED RGB all on 50 W CC 700 mA @24 V-DC 30° medium UW, 8x0,5 qmm
