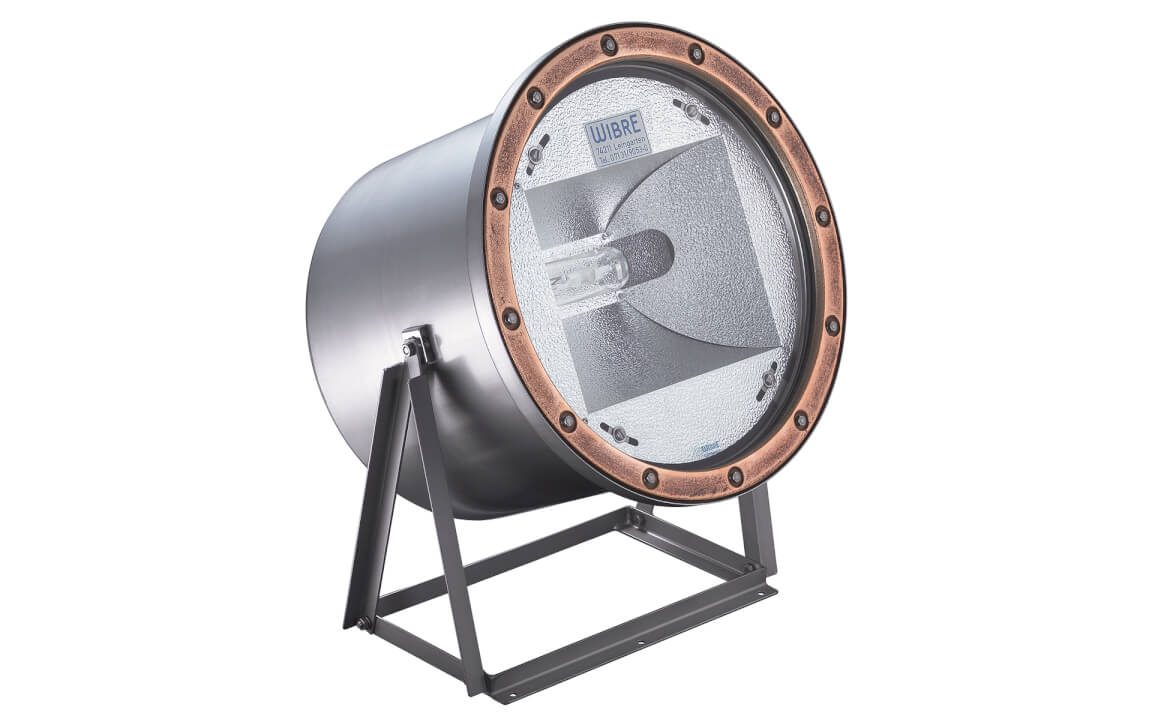

4.2202Surface Dock-Light
For use at ship-docks, raw sea and for special solutions, in fountains and high waterjets.
Description
- Protection class IP68 – up to 5 m water depth
- Entirely made of stainless steel 316Ti 1.4571
- Cover is made of bronze
- Mounting foot adjustable through 180°
- metal halogen vapour lamps
- toughened safety glass which is resistant to temperature changes
- Supplied completely ready for connection, with ballast device and ignition device, light source and silicon cable (10 m)
- inclusive pivoting/standing frame
Notes/Options
- pivoting/standing frame inclusive
- Coloured HIT light sources available
- POW-LED on request
Accessories / Housings
4.2001.00.00
- Protective grille
- made of V4A-stainless steel
| Article number | Lamps | Wattage | V/mA | Socket | Light-current | Cable, installs | |||
|---|---|---|---|---|---|---|---|---|---|
| Versions: Only underwater operations | |||||||||
| Flood | |||||||||
| 4.2204.00.00 | HIT (E40) | 42.000lm | 400W | E40 | Si, 3x2,5 qmm | ||||
| 4.2206.00.00 | HIT-DE | 90.000lm | 1000W | Kabel | Si, 3x2,5 qmm | ||||
| Spot | |||||||||
| 4.2204.10.00 | HIT-DE | 36.000lm | 400W | Fc2 | Si, 3x2,5 qmm | ||||
| Versions: Under- and overwater operations (According to prior agreement) | |||||||||
| Flood | |||||||||
| 4.2202.00.00 | HIT (E40) | 21.000lm | 250W | E40 | Si, 3x2,5 qmm | ||||
| Spot | |||||||||
| 4.2202.10.00 | HIT-DE | 22.000lm | 250W | Fc2 | Si, 3x2,5 qmm | ||||
