4.2000Swimmingpool-Light

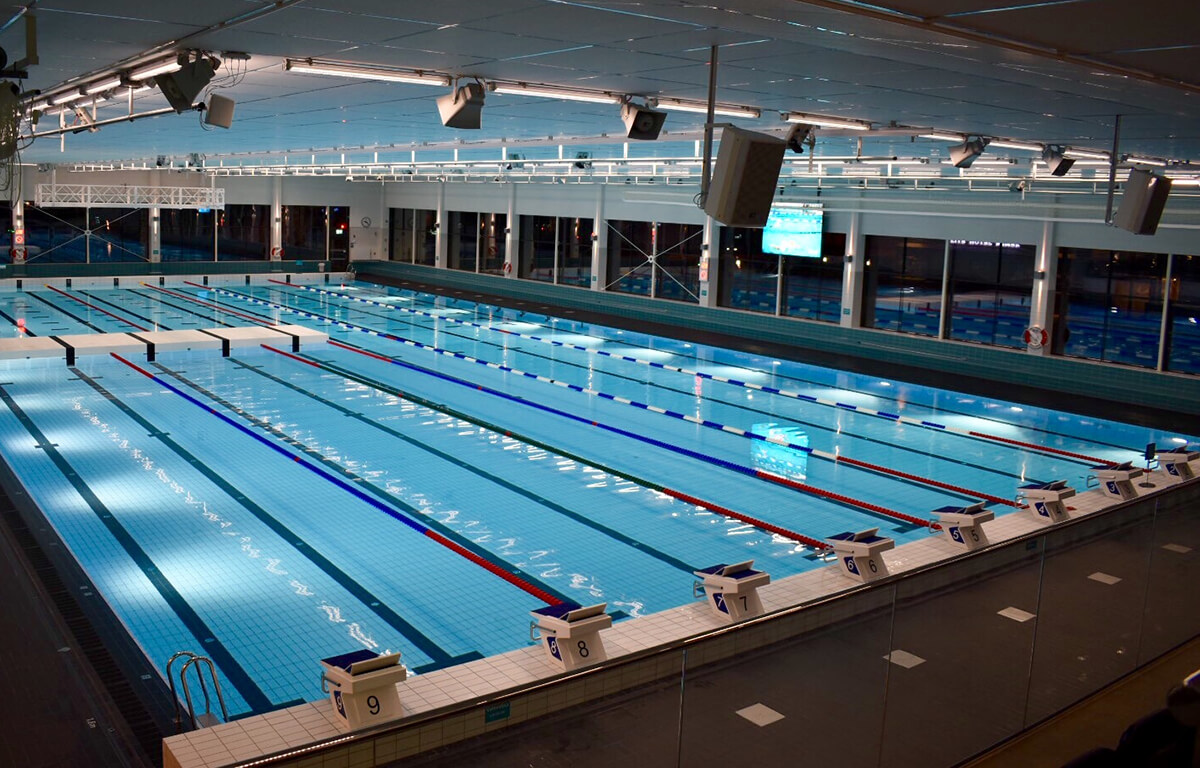

For illuminating sport pools and competition pools (approx. 50 x 20 meters).
Description
- Protection system IP68 – for a water depth of up to 3 m
- Entirely made of stainless steel 316Ti 1.4571

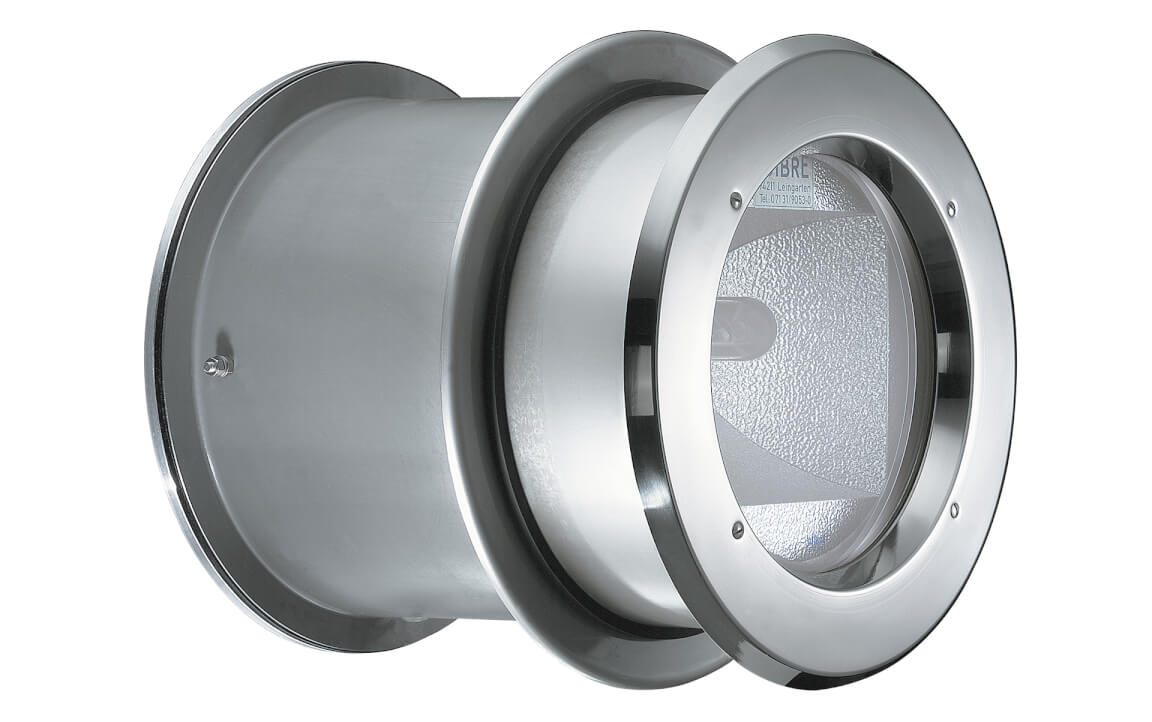

- HIT metal vapour lamps (E40, fully wired with ballast)
- Beam angle: 80° symmetric/horizontal and 45° asymmetric/vertical

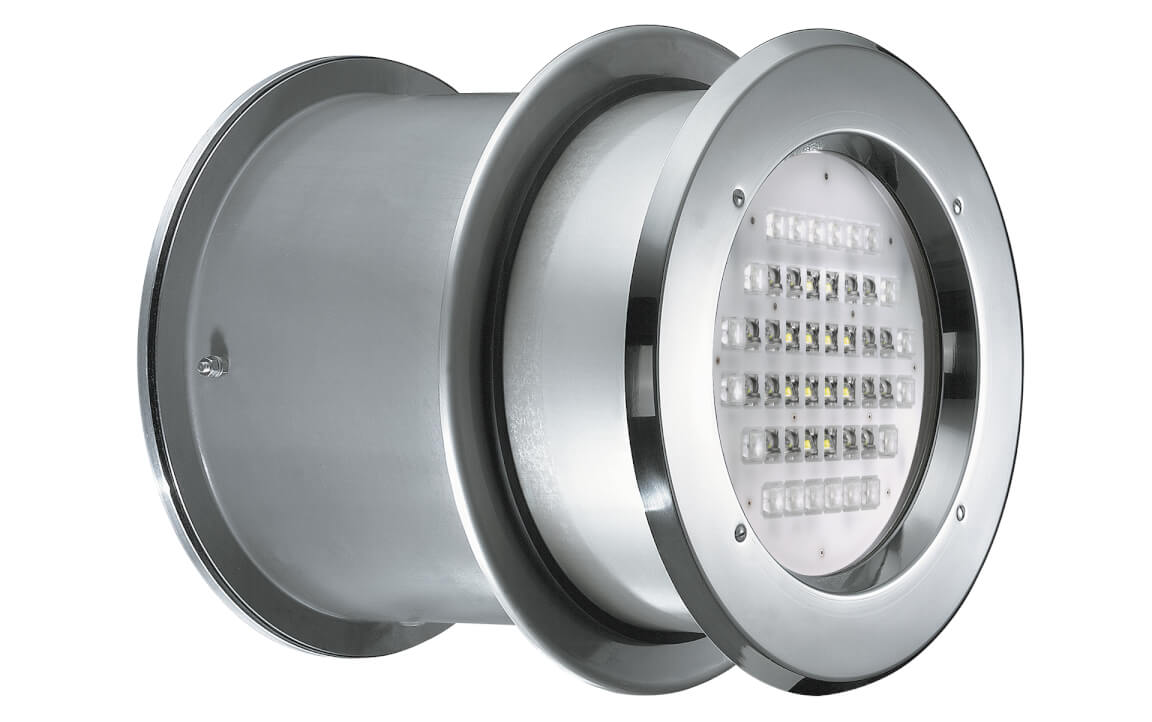

- POW-LED white 12 V-DC
- For competition pools and sports pools with walkaround or surrounding shaft
- Wall installation in all standard pool types (see table)
- Light source is changed from the pool walkaround.
- Supplied with light source and silicon cable already connected
Notes/Options
- Customer-specific installations and special designs available on request.
- Total length of the light at POW-LED = length + 70 mm
- POW-LED RGB or RGB-W on request
Accessories / Housings
9.2000.00.00
- adapter frame
- made of white plastic, for adapting the marine grade 316L stainless steel cover
9.2020.00.00
- housing extension
- per each 400 mm
9.2021.00.00
- housing shorten
- minimal 290 mm
| Article number | Lamps | Lumen | Light colour | Wattage | Voltage | ||||
|---|---|---|---|---|---|---|---|---|---|
| Tiled concrete pools (tiles+mortar 15–20 mm) | |||||||||
| Tiled concrete pools (tiles+mortar 15–20 mm) | |||||||||
| 4.2000.00.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.00.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.00.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.00.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.00.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
| Concrete pools with fitted foil (pressure flange) | |||||||||
| Concrete pools with fitted foil (pressure flange) | |||||||||
| 4.2000.01.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.01.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.01.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.01.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.01.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
| Thin-walled pools (pressure flange) | |||||||||
| Thin-walled pools (pressure flange) | |||||||||
| 4.2000.02.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.02.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.02.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.02.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.02.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
| Pools with adhesive/foil coatings (adhesive flange) | |||||||||
| Pools with adhesive/foil coatings (adhesive flange) | |||||||||
| 4.2000.03.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.03.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.03.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.03.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.03.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
| Stainless steel pools (welded flange) | |||||||||
| Stainless steel pools (welded flange) | |||||||||
| 4.2000.04.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.04.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.04.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.04.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.04.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
| Tiled pools with movable floors (tiles+mortar 16–20 mm) | |||||||||
| Tiled pools with movable floors (tiles+mortar 16–20 mm) | |||||||||
| 4.2000.50.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.50.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.50.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.50.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.50.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
| later installation (tiles+mortar 15–20 mm) | |||||||||
| later installation (tiles+mortar 15–20 mm) | |||||||||
| 4.2000.60.25 | HIT (E40) | 21.000lm | 4200K | 250W | 230V | Si, 3x2,5 qmm | M14 | ||
| 4.2000.60.40 | HIT (E40) | 42.000lm | 4200K | 400W | 230V | Si, 3x2,5 qmm | M15 | ||
| 4.2002.60.11 | High-POW-LED | 25000 lm | 6500K cold white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.60.12 | High-POW-LED | 20110 lm | 3000K warm white | total 170 W | CV 12 V-DC | flood | |||
| 4.2002.60.13 | High-POW-LED | 21680 lm | 4000K neutral white | total 170 W | CV 12 V-DC | flood | |||
Related products
Retrofit-Insertion for 4.2000 4.2013
- Up to 18600 lumen light intensity
- Sustainable replacement for 250/400 W HIT

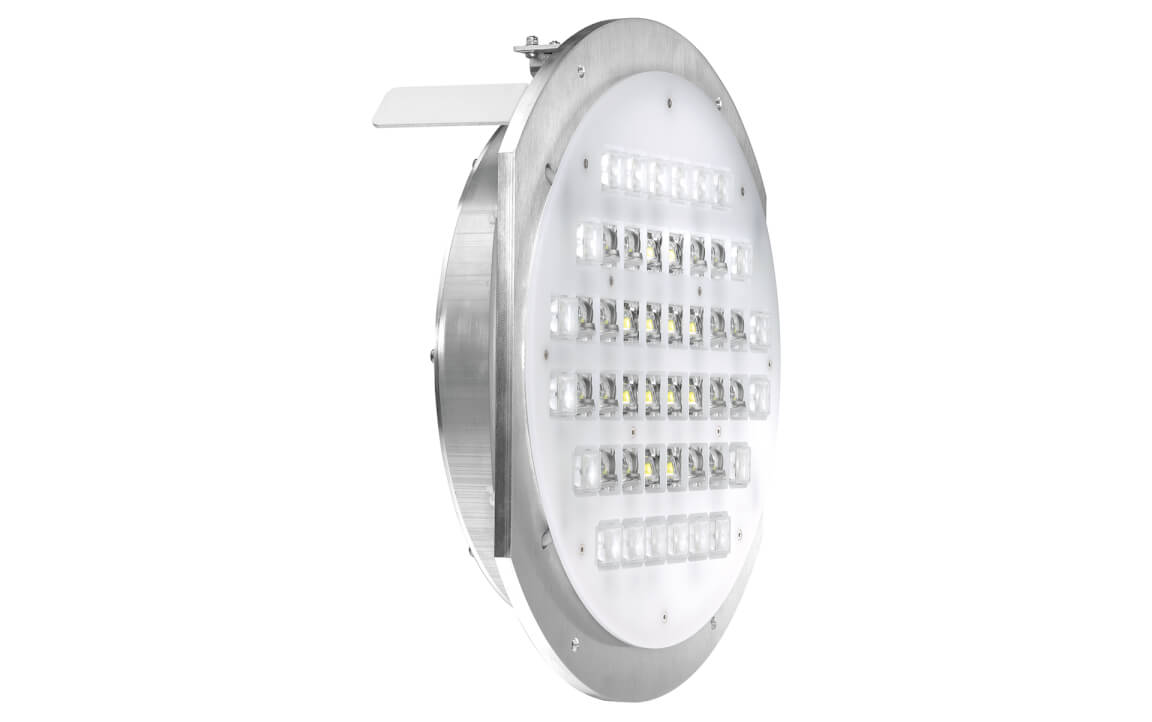

Retrofit-Insertion for 4.2000 4.2012
- Light output equivalent replacement for HIT 250 W/400 W
- Up to 25000 lumen light intensity
- Easy installation

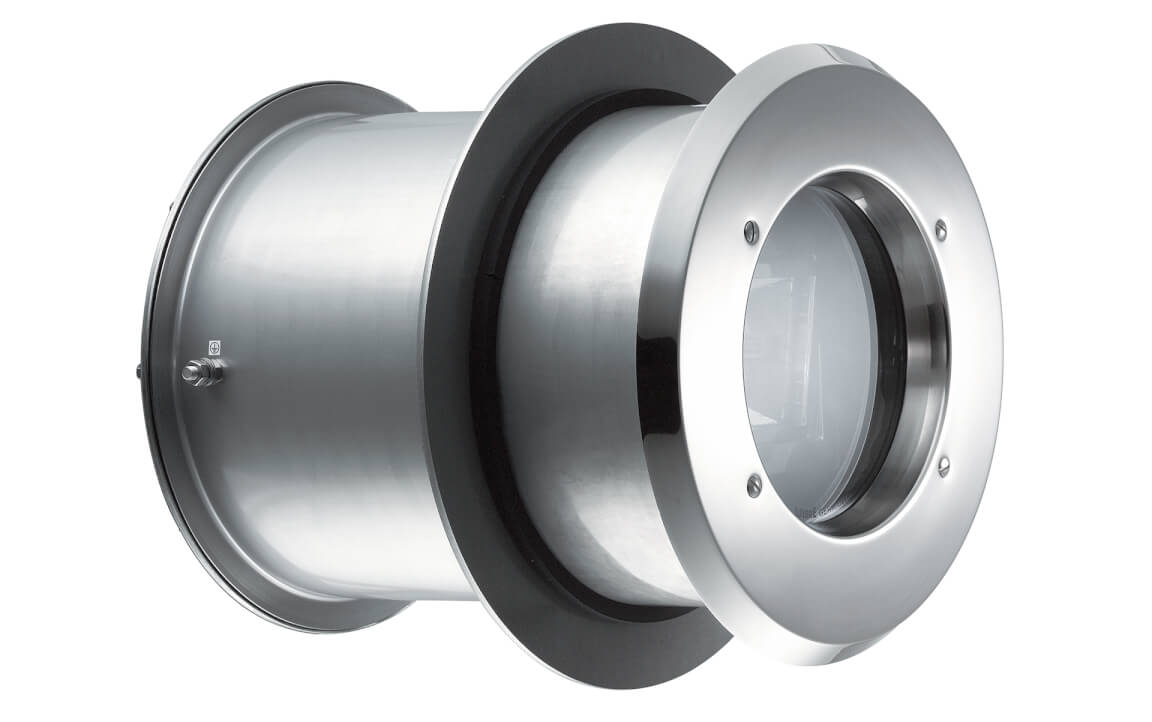

Swimmingpool-Light 4.1900
