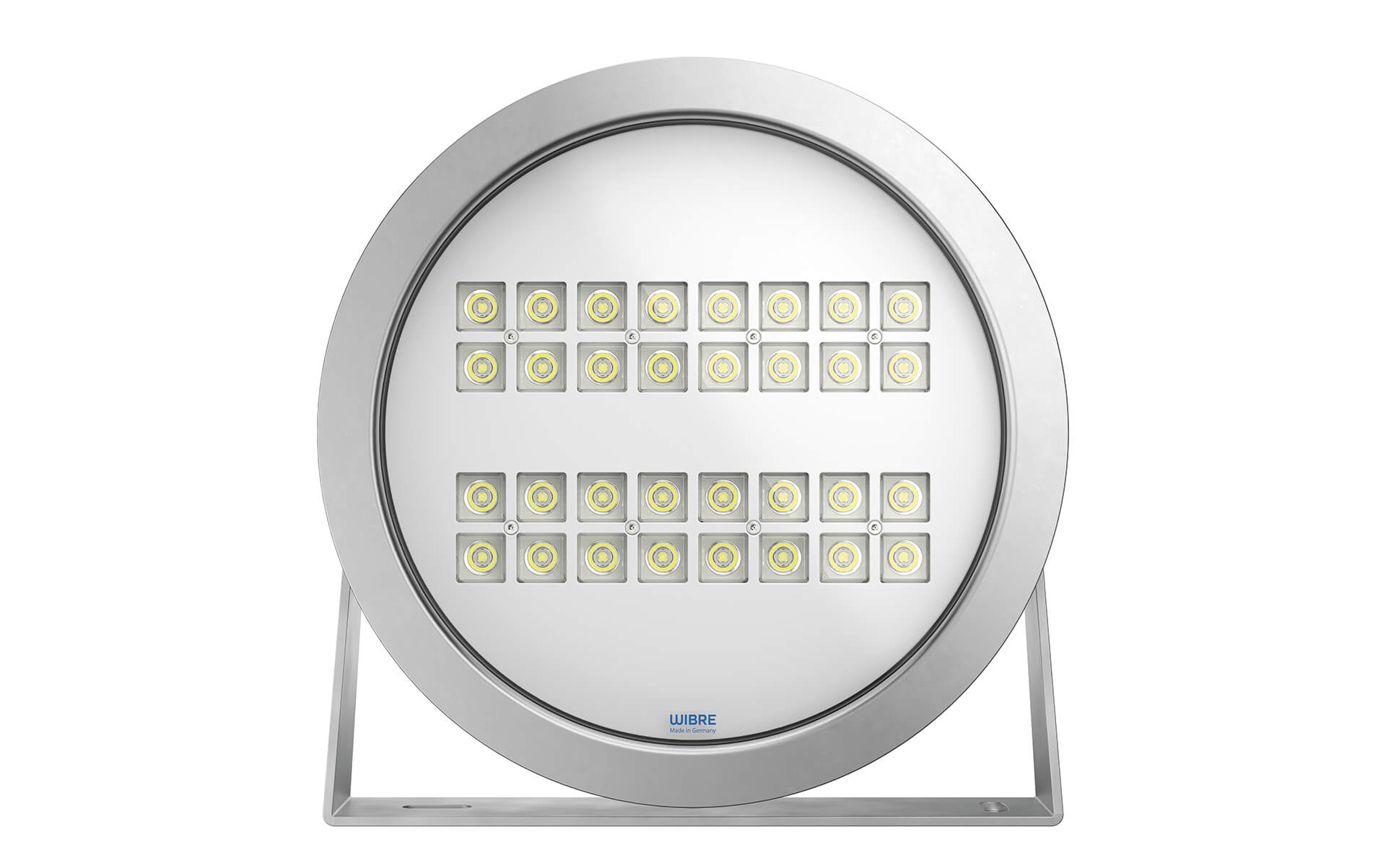

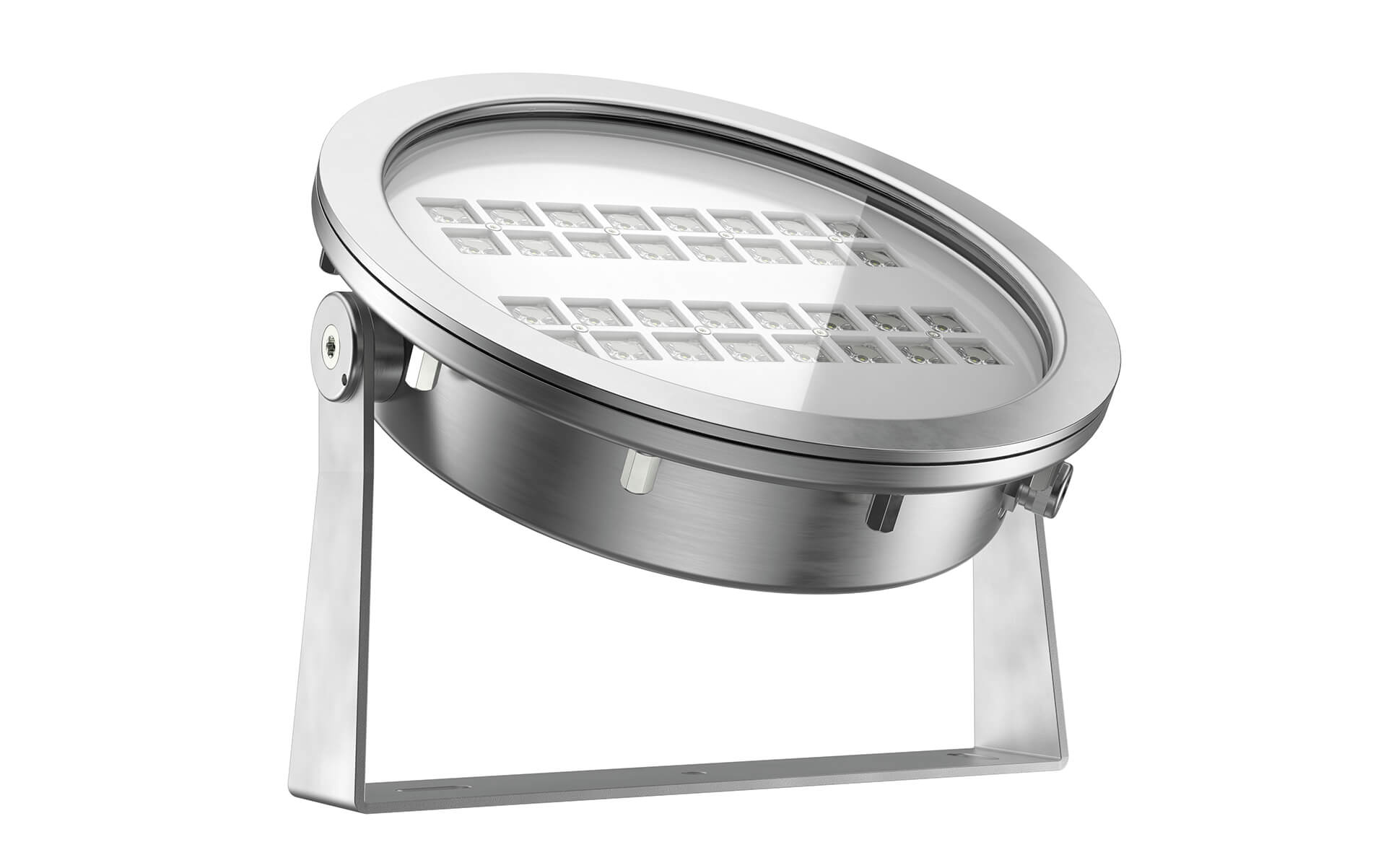

4.0490Surface-mounted Spotlight
Up to 18400 lumen light intensity

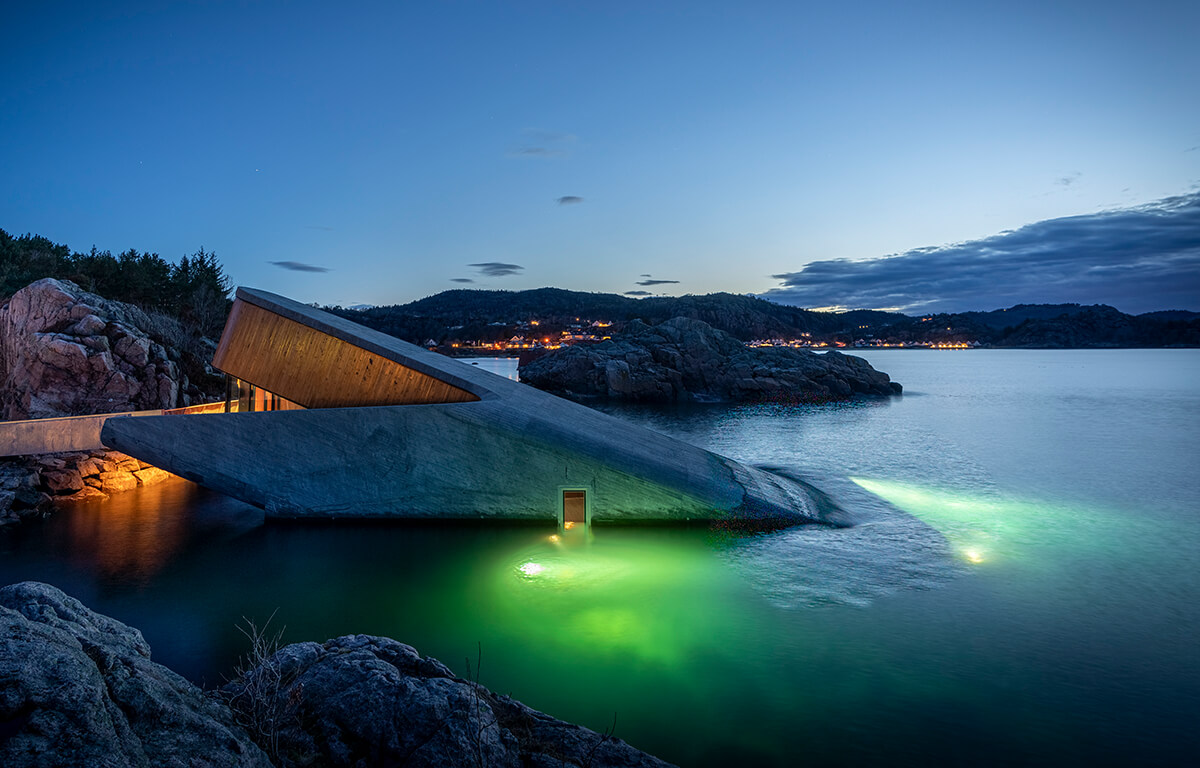

Perfect for fountains and waterside architecture
Description
- Protection class IP68 – up to 25m water depth
- Protection class IP69 - protection against high pressure and high jet water temperatures
- Entirely made of stainless steel 316Ti 1.4571, electropolished

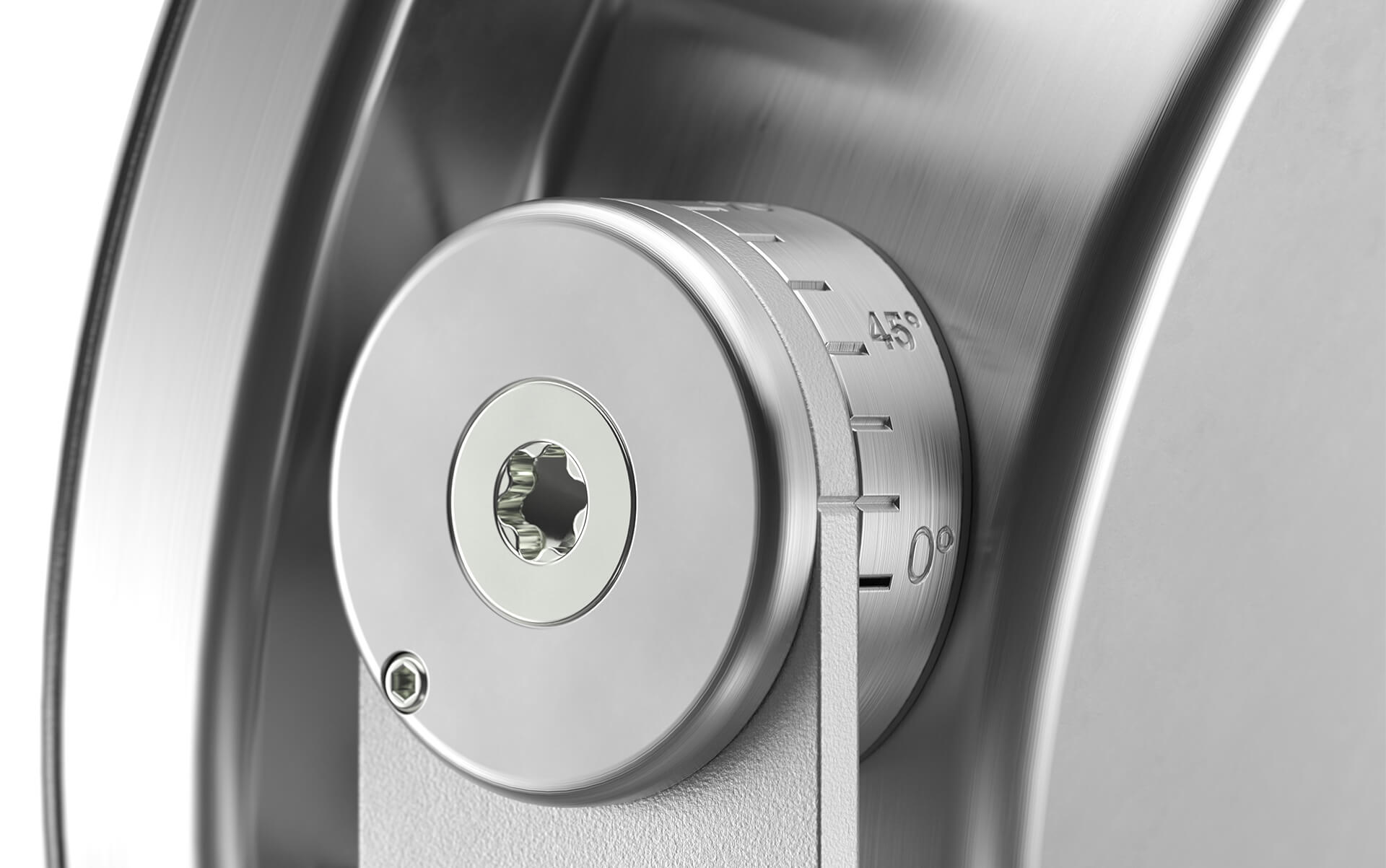

- Mounting foot adjustable through 90°
- POW-LED cold white, warm white, neutral white
- Multichip POW-LED RGB-W
- operating mode: constant current
- temperature controlled (onboard)
- surge protection
- Rotationally symmetric light distribution
- Constant-current power source/RGB controller external
- Supplied with lamp and 5 m of underwater cable
Notes/Options
- Beam Angle: spot 10°, medium 25°, wide 50°, flood 120°, elliptisch 50x15° available
- POW-LED monochrome, single colour in green, red, amber, blue, capri blue, 2700K
Accessories / Housings
9.0490.00.20
- Additional disc, frosted
- for softer light distribution (light loss approx. -15%)
- for spotlight 4.0490 and 4.0492
| Article number | Lamps | Lumen | Light colour | Wattage | Current | Radation angle | Cable, installs | ||
|---|---|---|---|---|---|---|---|---|---|
| Versions: Underwater environments only | |||||||||
| 4.0490.00.11 | 32 POW-LED | 18400 lm | 6000K cold white | total 120 W | CV 12 V-DC | 25° medium | UW, 2x4,0 qmm | ||
| 4.0490.00.12 | 32 POW-LED | 15040 lm | 3000K warm white | total 120 W | CV 12 V-DC | 25° medium | UW, 2x4,0 qmm | ||
| 4.0490.00.13 | 32 POW-LED | 16080 lm | 4500K neutral white | total 120 W | CV 12 V-DC | 25° medium | UW, 2x4,0 qmm | ||
| 4.0490.00.41 | 32 Multichip POW-LED | cold white: 4640 lm | RGB-CW cold white 6000K | all on 150 W | CC max 24 V-DC | 25° medium | UW, 10x1,0 qmm | ||
| 4.0490.00.42 | 32 Multichip POW-LED | warm white: 4020 lm | RGB-CW warm white 3000K | all on 150 W | CC max 24 V-DC | 25° medium | UW, 10x1,0 qmm | ||
| 4.0490.00.43 | 32 Multichip POW-LED | neutral white: 4320 lm | RGB-CW neutral white 4500K | all on 150 W | CC max 24 V-DC | 25° medium | UW, 10x1,0 qmm | ||
