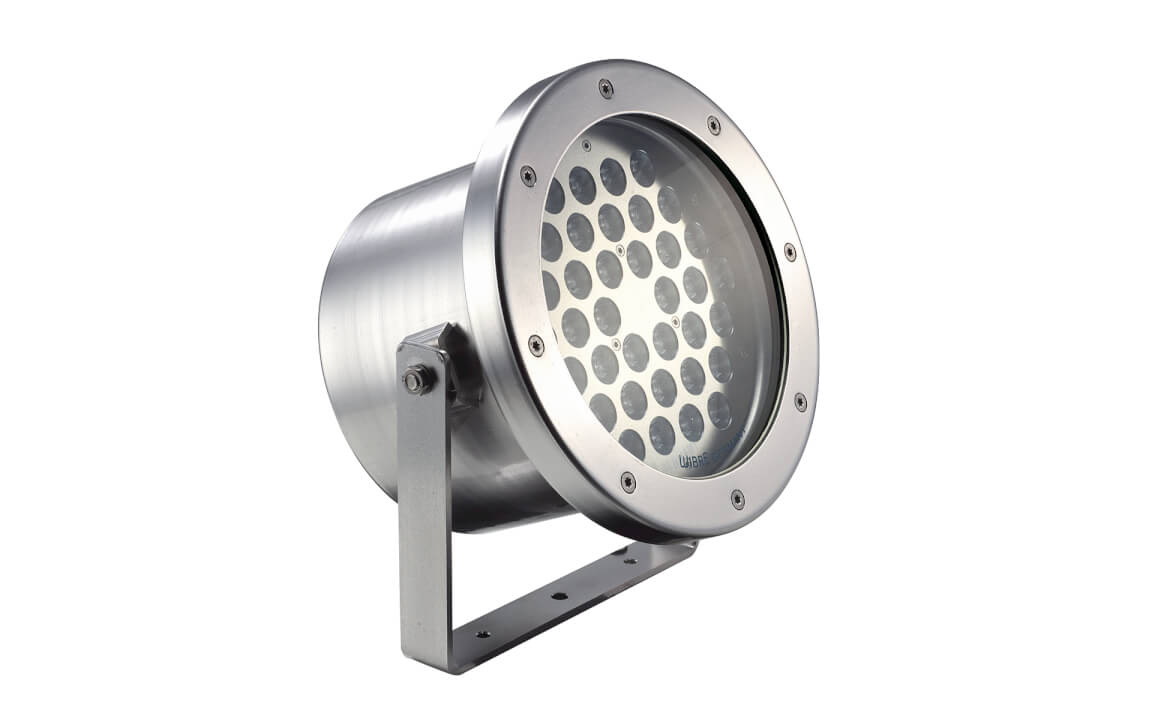

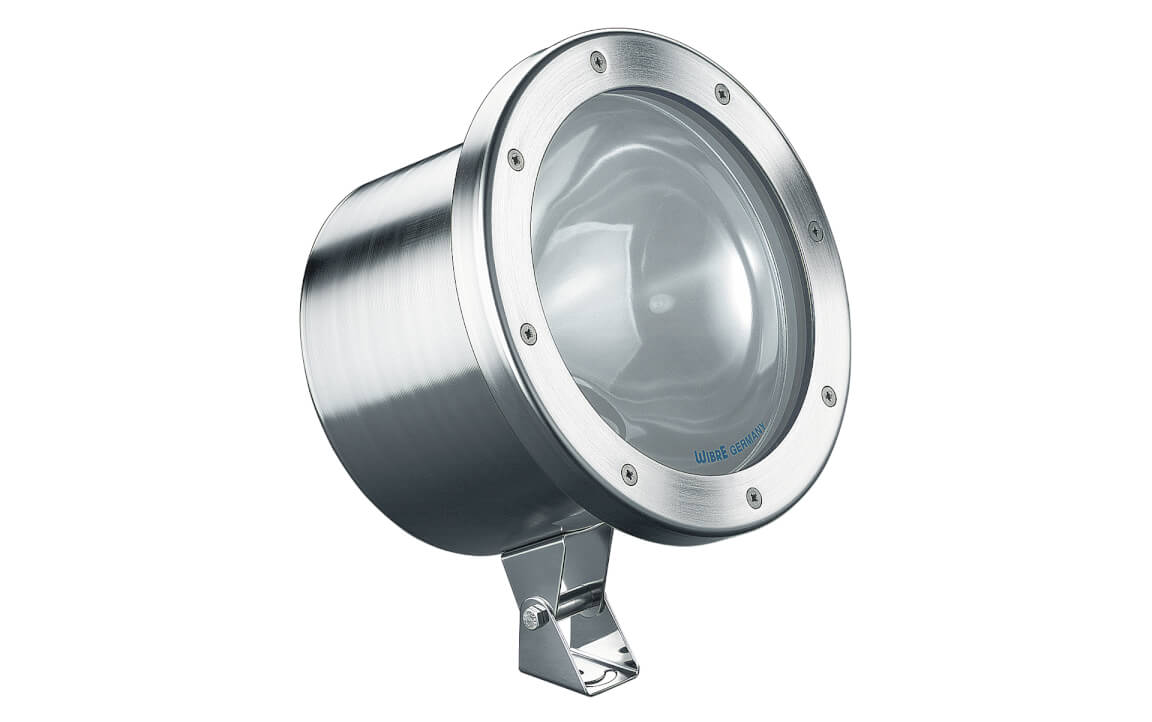

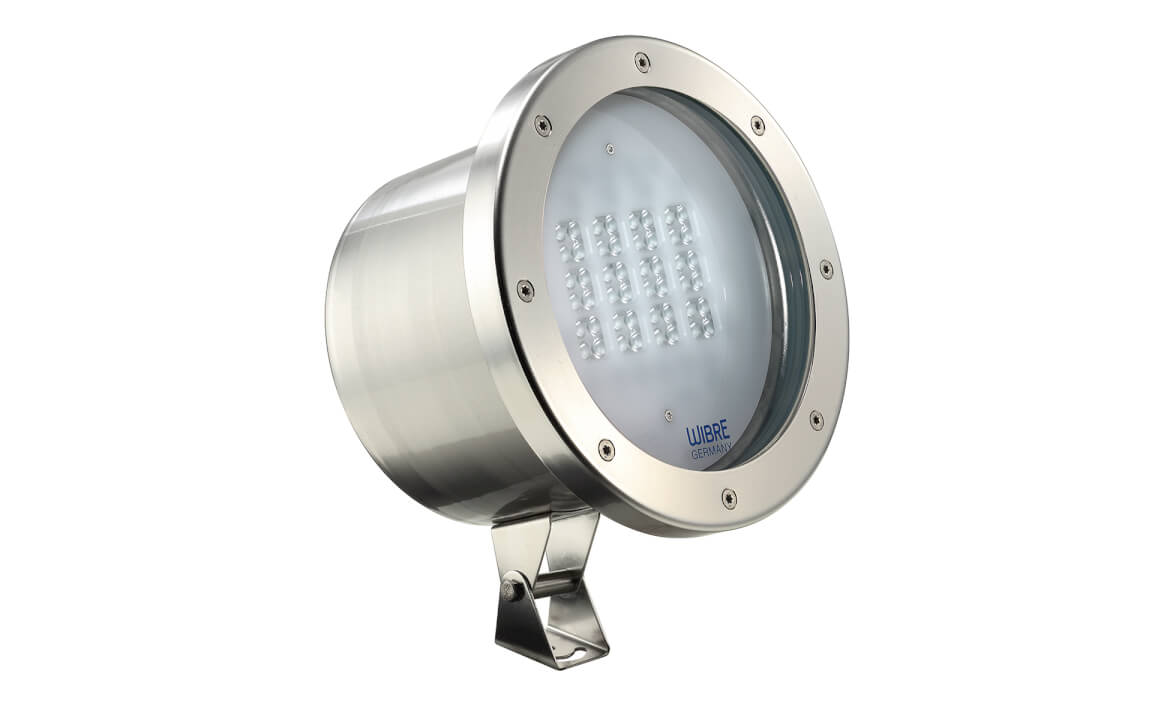

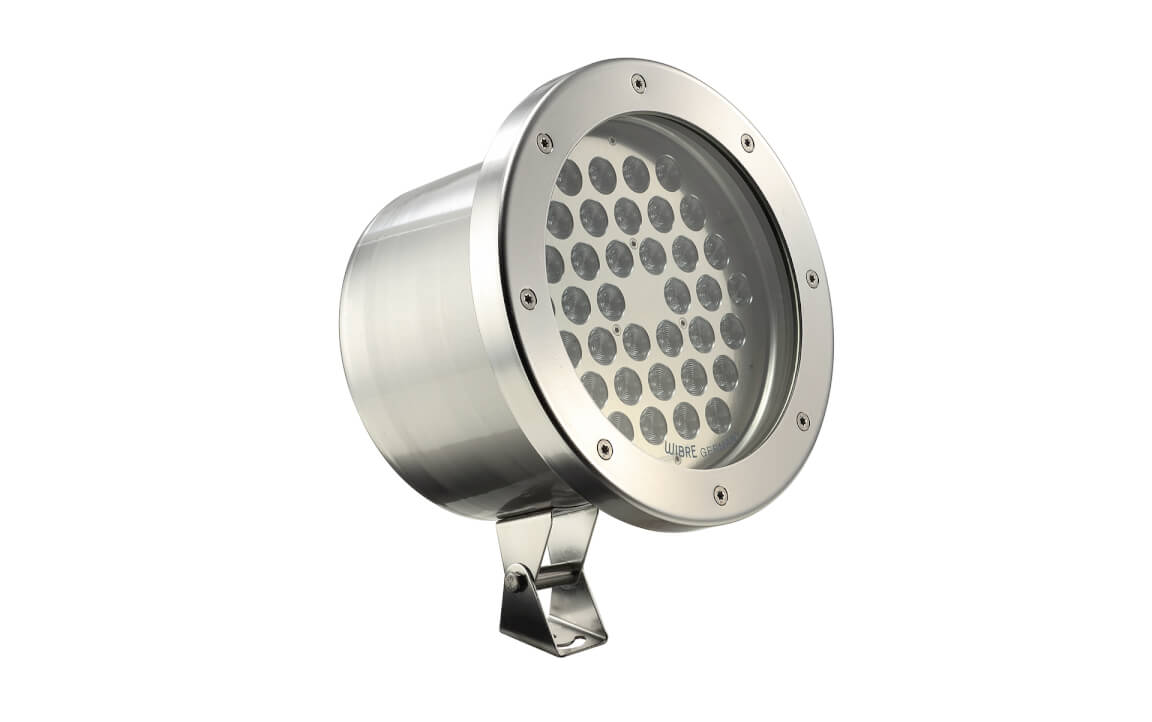

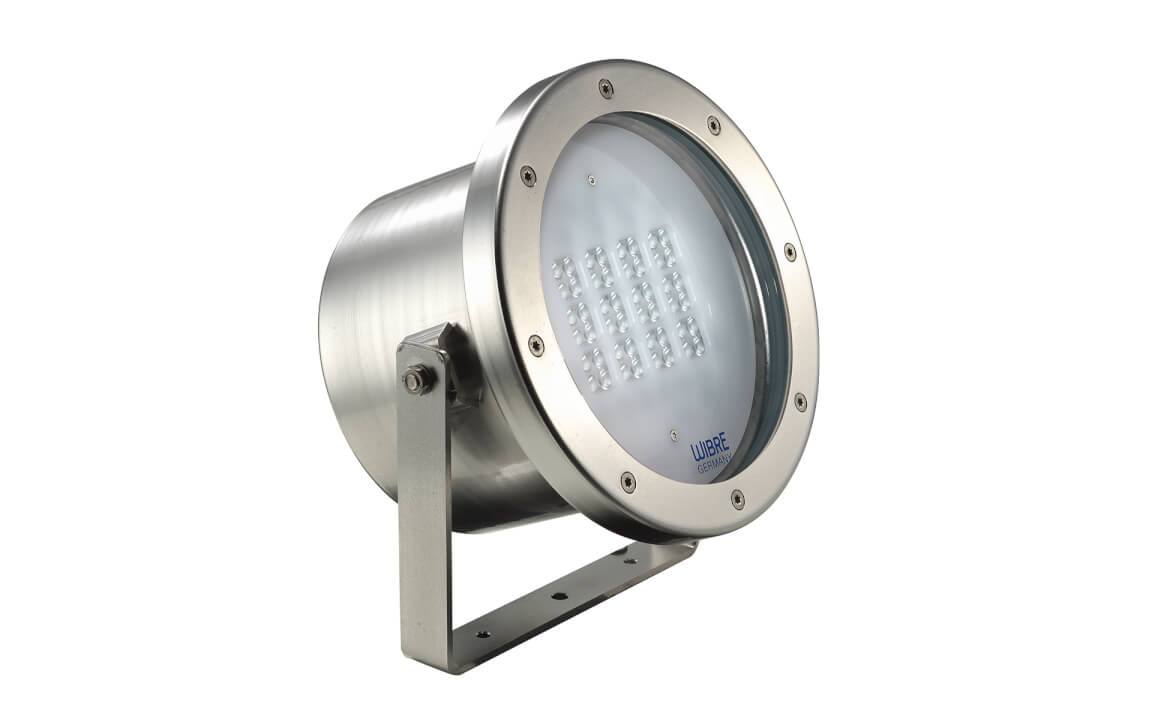

4.0365Surface Spotlight

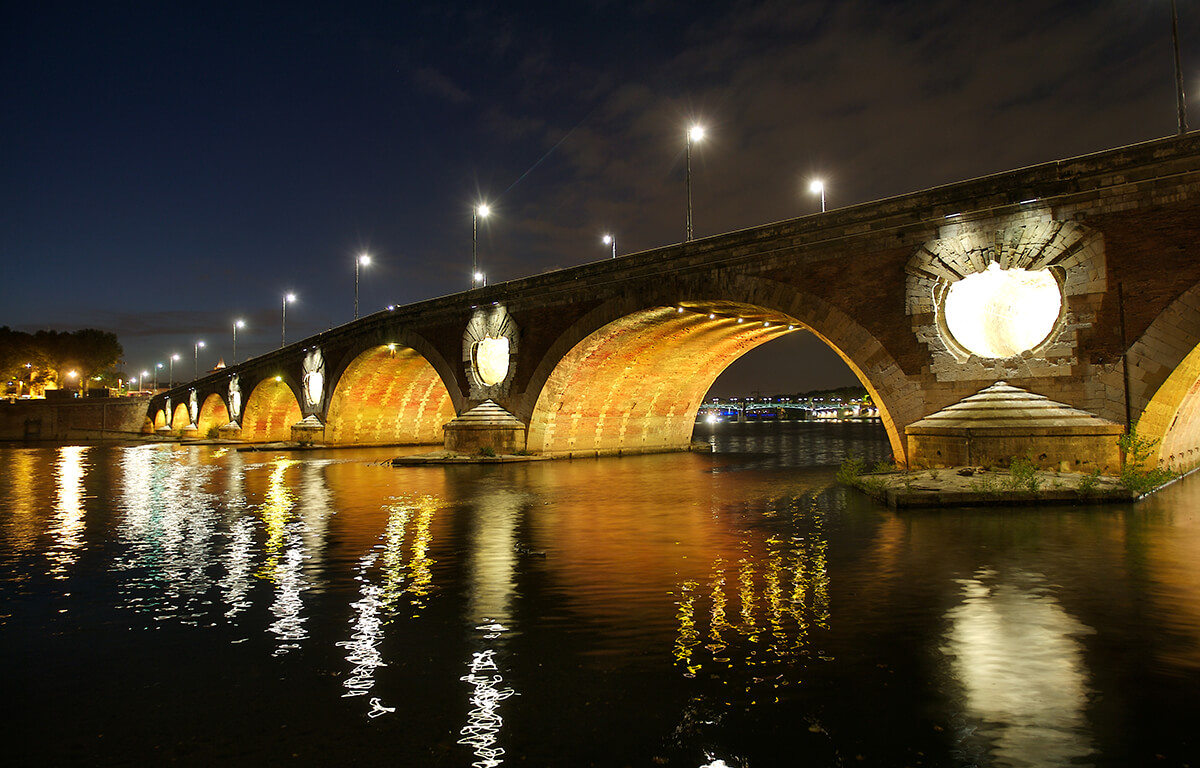

For illuminating large fountains, bridges and exterior areas.

Description

  • Protection class IP68 – up to 3m water depth
  • Entirely made of stainless steel 316Ti 1.4571

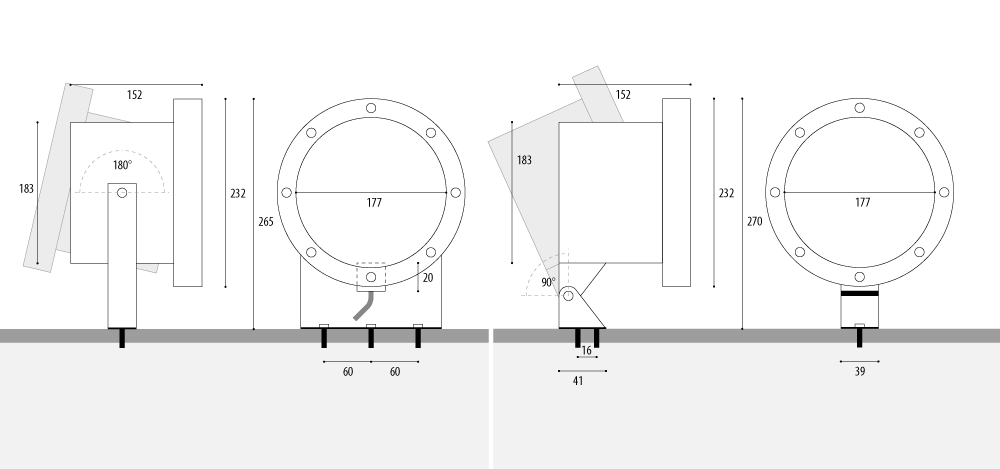

  • Mounting foot adjustable through 180° or 90°
  • operating mode: constant current
  • POW-LED cold white, warm white, neutral white, CC
  • POW-LED RGB
  • operating mode: constant voltage
  • POW-LED cold white, warm white, neutral white, CV
  • Multichip POW-LED RGB-W
  • POW-LED-Platine temperatur control (NTC)
  • Halogene
  • Cable gland PG16/21, marine grade 316Ti stainless steel
  • Temperature-resistant silicon seal
  • Toughened safety glass
  • Ballast and ignitor fitted depending on the version
  • POW-LED-Version with light source and 3 m cable
  • conventional versions without bulb and without cable

Notes/Options

  • SALINE version possible - Article number with additional „S“ at the end
  • Radation Angle: POW-LED: 10°, 30°, 45°
  • POW-LED monochrome, single colour in green, red, amber, blue
  • Please order the double cable gland for ring assembly separately (not for constant current 350 mA)
  • 12 V-DC dimmable with dimming module 5.0690.03.15. Note: Other cable to the spotlight is required. Requires further agreements.
  • Water depths of up to 30 m available (Special version)
  • Individual configuration of the LED multichips possible

Accessories / Housings

4.0230.01.00

  • glass disc, frosted
  • for softer light distribution (light loss approx. -15%)
  • for lock ring

4.0305.50.00

  • spike
  • Stainless steel, 395 mm, for mounting foot 90°

4.0004.40.16

  • double cable gland
  • made of V4A-stainless steel

4.0009.00.20

  • angular ring
  • with 2 protection bars

4.0003.01.00

  • anti-glare louver
  • black, for symm. and asymm. Reflector

4.0009.00.40

  • angular ring
  • with 4 protection bars
Article number Lamps Lumen Light colour Wattage Current/Voltage Socket Radation angle Cable
Versions: Only underwater operations - Mounting foot adjustable through 90°
4.0365.00.41 12 Multichip POW-LED coldwhite: 2720 lm RGB-CW cold white 6000K all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
4.0365.00.42 12 Multichip POW-LED warmwhite: 2095 lm RGB-WW warm white 3000K all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
4.0365.00.43 12 Multichip POW-LED neutralwhite: 2385 lm RGB-NW neutral white 4500K all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
4.0365.00.44 12 Multichip POW-LED RGB amber all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
halogen
4.0305.00.00 QT32 150W E27 24° UW, 3x1,5 qmm
4.0305.00.25 M36 250W GY6,35 28° UW, 2x2,5 qmm
4.0305.00.30 QR-CBC51 1.450cd 3000K 6 x 50W GU5,3 36° UW, 2x2,5 qmm
4.0305.00.38 M38 300W GY9.5 24° UW, 3x1,5 qmm
4.0305.00.40 M40 500W GY9.5 26° UW, 3x1,5 qmm
4.0305.00.70 HIT-CRI 70W G12 19° UW, 3x1,5 qmm
Versions: Only underwater operations - Mounting foot adjustable through 180°
4.0362.00.41 12 Multichip POW-LED coldwhite: 2720 lm RGB-CW cold white 6000K all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
4.0362.00.42 12 Multichip POW-LED warmwhite: 2095 lm RGB-WW warm white 3000K all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
4.0362.00.43 12 Multichip POW-LED neutralwhite: 2385 lm RGB-NW neutral white 4500K all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
4.0362.00.44 12 Multichip POW-LED RGB amber all on 110 W 30° medium UW, 2x2,5 + 4x0,5 qmm
halogen
4.0302.00.00 QT32 150W E27 24° UW, 3x1,5 qmm
4.0302.00.25 M36 250W GY6,35 28° UW, 2x2,5 qmm
4.0302.00.30 QR-CBC51 1.450cd 3000K 6 x 50W GU5,3 36° UW, 2x2,5 qmm
4.0302.00.38 M38 300W GY9.5 24° UW, 3x1,5 qmm
4.0302.00.40 M40 500W GY9.5 26° UW, 3x1,5 qmm
4.0302.00.70 HIT-CRI 70W G12 19° UW, 3x1,5 qmm
Versions: Under- and overwater operations (According to prior agreement) - Mounting foot adjustable through 90°
4.0365.00.01 36 POW-LED 5940 lm 6000K cold white total 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0365.00.02 36 POW-LED 4860 lm 3000K warm white total 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0365.00.03 36 POW-LED 5580 lm 4500K neutral white total 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0365.00.09 36 POW-LED RGB all on 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0365.00.61 36 POW-LED 5940 lm 6000K cold white total 43 W Klemme 30° medium UW, 2x2,5 qmm
4.0365.00.62 36 POW-LED 4860 lm 3000K warm white total 43 W Klemme 30° medium UW, 2x2,5 qmm
4.0365.00.63 36 POW-LED 5580 lm 4500K neutral white total 43 W Klemme 30° medium UW, 2x2,5 qmm
halogen
4.0305.00.10 QT12 1800 3000K 90W GY6,35 19° UW, 2x2,5 qmm
4.0305.00.35 HIT-CRI 35W G12 19° UW, 3x1,5 qmm
4.0305.00.50 HME 50W E27 109° UW, 3x1,5 qmm
Versions: Under- and overwater operations (According to prior agreement) - Mounting foot adjustable through 180°
4.0362.00.01 36 POW-LED 5940 lm 6000K cold white total 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0362.00.02 36 POW-LED 4860 lm 3000K warm white total 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0362.00.03 36 POW-LED 5580 lm 4500K neutral white total 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0362.00.09 36 POW-LED RGB all on 43 W Klemme 30° medium UW, 8x0,5 qmm
4.0362.00.61 36 POW-LED 5940 lm 6000K cold white total 43 W Klemme 30° medium UW, 2x2,5 qmm
4.0362.00.62 36 POW-LED 4860 lm 3000K warm white total 43 W Klemme 30° medium UW, 2x2,5 qmm
4.0362.00.63 36 POW-LED 5580 lm 4500K neutral white total 43 W Klemme 30° medium UW, 2x2,5 qmm
halogen
4.0302.00.10 QT12 1800 3000K 90W GY6,35 19° UW, 2x2,5 qmm
4.0302.00.35 HIT-CRI 35W G12 19° UW, 3x1,5 qmm
4.0302.00.50 HME 50W E27 109° UW, 3x1,5 qmm
