4.0091Recessed spotlight

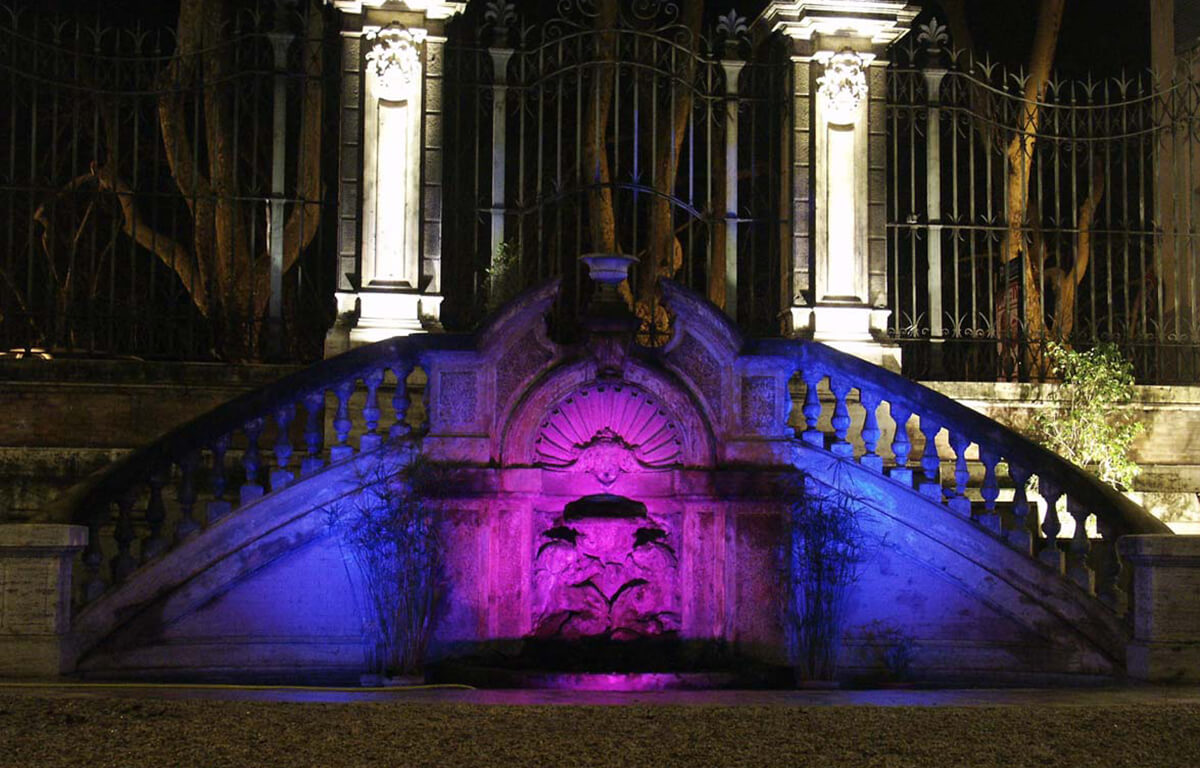

For lighting and accentuating exterior, façades, buildings, trees and public spaces.

Description

  • Protection system IP67
  • Entirely made of stainless steel 316Ti 1.4571
  • with installation housing made of stainless steel 316Ti

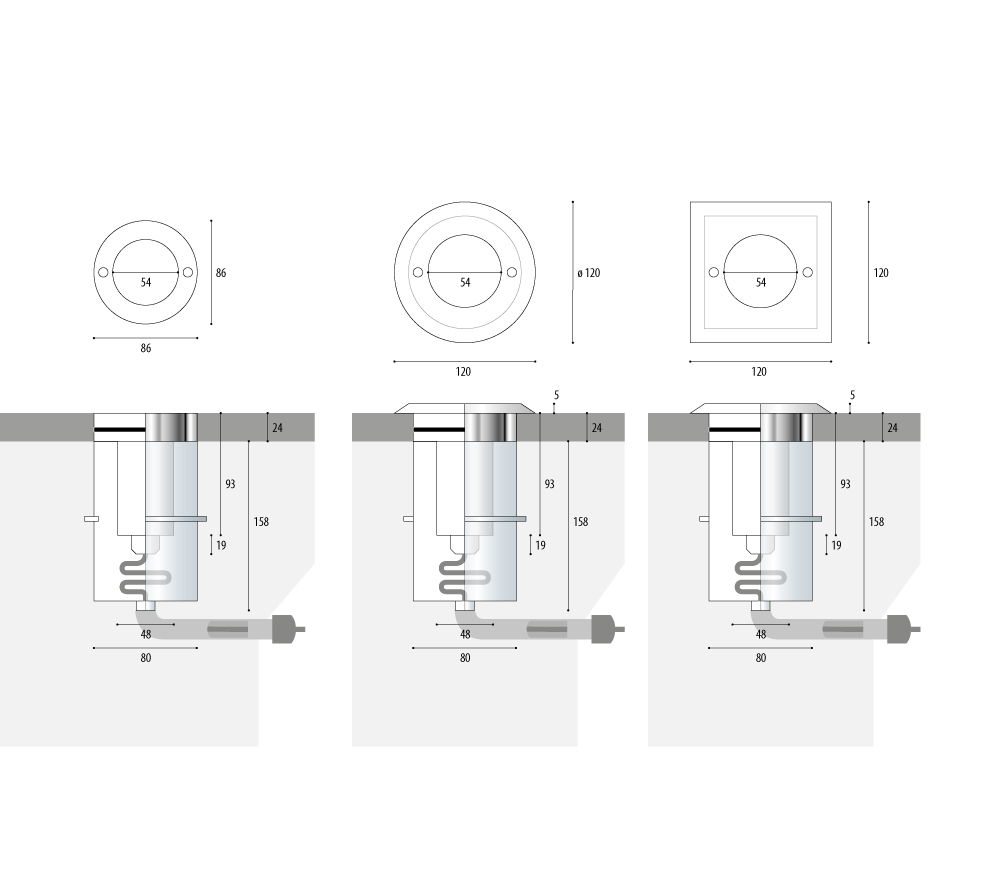

  • Flush-mounted, round and square cover, height 5 mm
  • POW-LED cold white, warm white, neutral white
  • POW-LED clored
  • POW-LED RGB
  • operating mode: constant current
  • low voltage halogen QR-CB51 ES 12 V-AC
  • High voltage QPAR16
  • Temperature-resistant silicon seal
  • Toughened safety glass (ESG) – withstands loads of up to 1500 kg
  • Cable gland PG11, nickel-plated brass
  • Supplied with cable (3 m) already connected, light source and installation housing made of marine grade 316L stainless steel with 1.5m cable protection tube

Notes/Options

  • POW-LED, series-connected
  • special designs available on request
  • Radation Angle: POW-LED: 10°, 30°, 45°
  • Radation Angle: Halogen QR-CB51: 10°, 24°, 38°, 60°
  • Special brass covers
  • Coloured QR-CB51 light sources

Accessories / Housings

4.0093.01.00

  • glass disc, frosted
  • for softer light distribution (light loss approx. -15%)

4.0093.02.00

  • Anti-skid coating
Article number Lamps Lumen Light colour Wattage Current Socket Temperature Radation angle Cable, installs

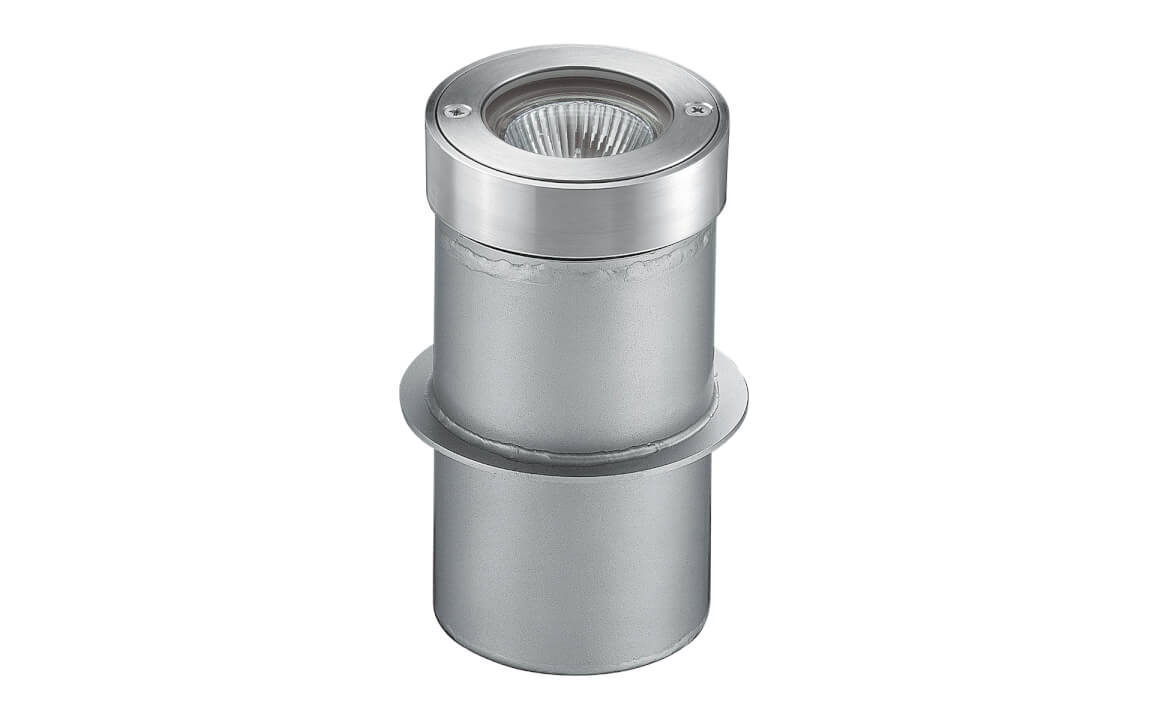

Circular cover
QR-CB51
4.0091.20.20 QR-CBC51 (IRC) 300 3000K 20W 12V-AC GU5,3 80° 36° Si, 2x1,5 qmm
4.0091.20.35 QR-CBC51 (IRC) 620 3000K 35W 12V-AC GU 5,3 90°C 36° Si, 2x1,5 qmm
POW-LED
4.0091.20.11 3 POW-LED 495 lm 6000K cold white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.12 3 POW-LED 405 lm 3000K warm white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.13 3 POW-LED 465 lm 4500K neutral white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.14 3 POW-LED yellow total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.15 3 POW-LED red total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.16 3 POW-LED blue total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.17 3 POW-LED green total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.20.19 3 POW-LED RGB all on 5 W CC 350 mA <40°C 30° medium UW, 6x0,5 qmm
QPAR16
4.0091.20.51 QPAR16 35W 230V GU10 90°C 35° Si, 3x1,5 qmm

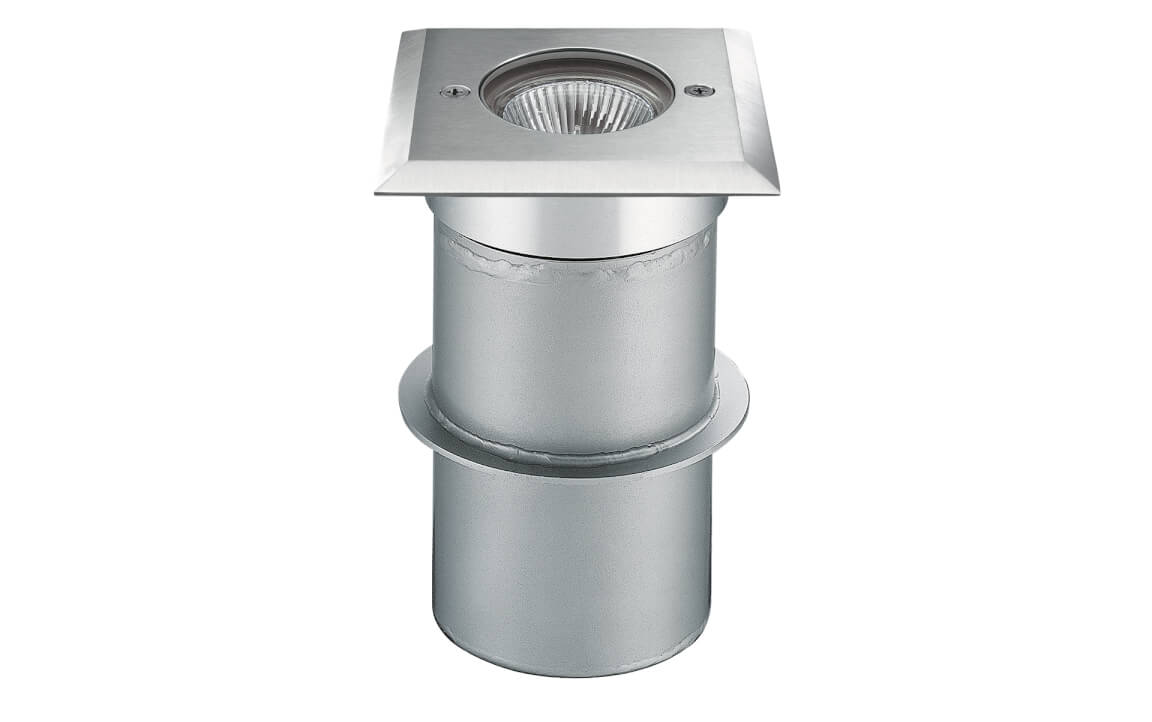

Squared cover
QR-CB51
4.0091.40.20 QR-CBC51 (IRC) 300 3000K 20W 12V-AC GU5,3 80° 36° Si, 2x1,5 qmm
4.0091.40.35 QR-CBC51 (IRC) 620 3000K 35W 12V-AC GU 5,3 90°C 36° Si, 2x1,5 qmm
POW-LED
4.0091.40.11 3 POW-LED 495 lm 6000K cold white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.12 3 POW-LED 405 lm 3000K warm white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.13 3 POW-LED 465 lm 4500K neutral white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.14 3 POW-LED yellow total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.15 3 POW-LED red total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.16 3 POW-LED blue total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.17 3 POW-LED green total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.40.19 3 POW-LED RGB all on 5 W CC 350 mA <40°C 30° medium UW, 6x0,5 qmm
QPAR16
4.0091.40.51 QPAR16 35W 230V GU10 90°C 35° Si, 3x1,5 qmm
Flush cover
QR-CB51
4.0091.10.20 QR-CBC51 (IRC) 300 3000K 20W 12V-AC GU5,3 80° 36° Si, 2x1,5 qmm
4.0091.10.35 QR-CBC51 (IRC) 620 3000K 35W 12V-AC GU 5,3 90°C 36° Si, 2x1,5 qmm
POW-LED
4.0091.10.11 3 POW-LED 495 lm 6000K cold white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.12 3 POW-LED 405 lm 3000K warm white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.13 3 POW-LED 465 lm 4500K neutral white total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.14 3 POW-LED yellow total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.15 3 POW-LED red total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.16 3 POW-LED blue total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.17 3 POW-LED green total 5 W CC 350 mA <40°C 30° medium UW, 2x1,5 qmm
4.0091.10.19 3 POW-LED RGB all on 5 W CC 350 mA <40°C 30° medium UW, 6x0,5 qmm
QPAR16
4.0091.10.51 QPAR16 35W 230V GU10 90°C 35° Si, 3x1,5 qmm
